KGD AM 142 Segment Code Screen Thermostat with Operating Environment of Humidity 5 95%RH non-condensing and Consumption 2W

AM 142 Segment Code Screen Thermostat

2W Segment Code Screen Thermostat

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-AM-142

Request A Quote

Product Details

Fan:

Low Speed, Medium Speed, High Speed, Automatic Air

Display Accuracy:

±0.5℃

Temperature Measurement Accuracy:

±1℃

Operating Environment:

Temperature: 0 - 45℃, Humidity: 5 - 95%RH (non-condensing)

Power Consumption:

< 2W

Power Supply Voltage:

AC85 - 250V, 50/60Hz

Highlight:

AM 142 Segment Code Screen Thermostat

2W Segment Code Screen Thermostat

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

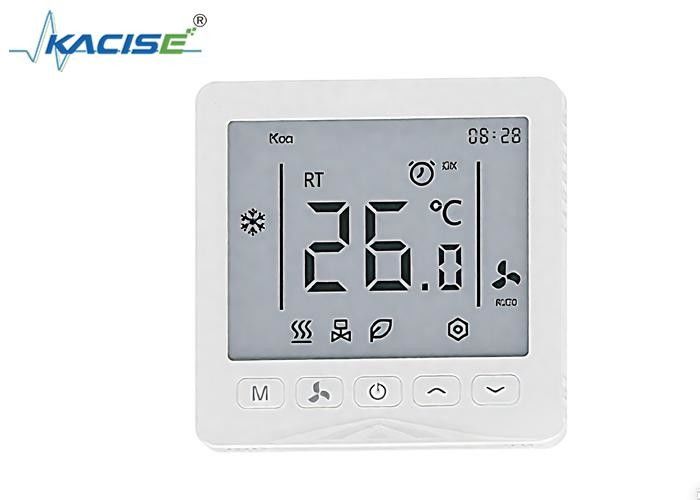

Segment Code Screen Thermostat KGD - AM - 142

Product Introduction

The segment code screen thermostat KGD - AM - 142 is specifically designed for the indoor temperature control of the fan coil system of two-pipe central air conditioners or air duct systems. The product adopts a segment code screen and mechanical buttons, and supports the customization of the operating system. By comparing the indoor temperature with the set temperature, it automatically controls the on/off of the fan coil, electric valve, electric ball valve or air valve, and heating equipment at the terminal of the air conditioning system to achieve the effects of comfort and energy conservation.

KGD AM 142 Segment Code Screen Thermostat with Operating Environment of Humidity 5 95%RH non-condensing and Consumption 2W 0

Product Features

Five mechanical buttons are simple and intuitive, and easy to operate.
Button lock function to avoid accidental operation.
Customizable temperature and time settings.
Power-off memory protection to ensure that data is not lost.
Compatible with standard 86 bottom boxes to meet the requirements of different installation environments.

Technical Parameters

Fan	Low speed, medium speed, high speed, automatic air
Display Accuracy	±0.5℃
Temperature Measurement Accuracy	±1℃
Operating Environment	Temperature: 0 - 45℃, Humidity: 5 - 95%RH (non-condensing)
Power Consumption	< 2W
Power Supply Voltage	AC85 - 250V, 50/60Hz
Load Current	< 5A (resistive load), < 1A (inductive load)
Overall Dimensions	868612mm
Mounting Hole Spacing	60mm (standard)
Protection Level	IP20
