Name: DC 5V±0.1V Operating Voltage Single Channel CO₂ Sensor KGD CM 101 Wide 400 5000ppm Detection Range For Precise Measurements
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-CM-101
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

DC 5V±0.1V Operating Voltage Single Channel CO₂ Sensor KGD CM 101 Wide 400 5000ppm Detection Range For Precise Measurements

Single channel CO₂ Sensor

Wide Detection Range CO₂ Sensor

Precise Measurements CO₂ Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-CM-101

Request A Quote

Product Details

Detection Range:

400 - 5000ppm

Detection Accuracy:

±(50ppm + 5% Of The Reading) Under The Environment Of 25°C±2°C

Operating Conditions:

-10°C To 50°C, Below 0 - 95%RH (non-condensing)

Storage Conditions:

-30°C To 70°C, Below 0 - 95%RH (non-condensing)

Operating Voltage:

DC 5V±0.1V, With A Ripple Less Than 50mv

Operating Current:

Average Operating Current 12μA@5min Measurement Cycle

Highlight:

Single channel CO₂ Sensor

Wide Detection Range CO₂ Sensor

Precise Measurements CO₂ Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

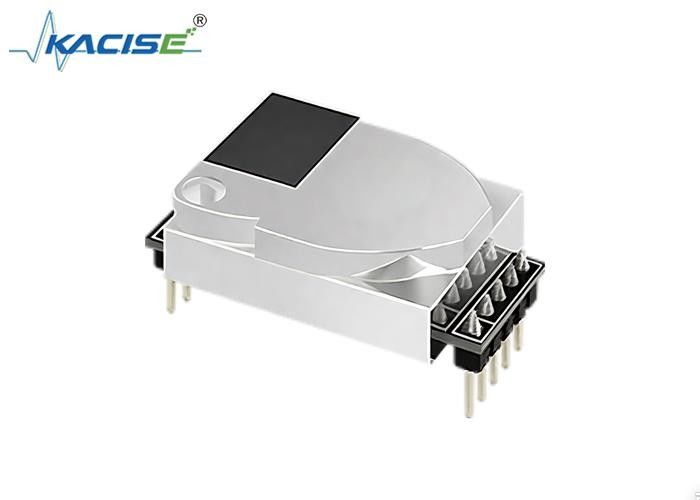

Ultra-low Power Single-channel CO₂ Sensor KGD - CM - 101

Product Introduction

The ultra-low power single-channel CO₂ sensor KGD - CM - 101 is redeveloped based on the CM1106. It features low power consumption, with an average power consumption of only 12uA. While reducing energy consumption, it can still maintain high measurement accuracy.

DC 5V±0.1V Operating Voltage Single Channel CO₂ Sensor KGD CM 101 Wide 400 5000ppm Detection Range For Precise Measurements 0

Product Features

NDIR core technology.
High selectivity, without cross-interference.
Ultra-low power consumption.
Matrix correction within the full range of temperature.
Small size, easy to integrate.
Long service life, maintenance-free.

Technical Parameters

Detection Range	400 - 5000ppm
Detection Accuracy	±(50ppm + 5% of the reading) under the environment of 25°C±2°C
Operating Conditions	-10°C to 50°C, below 0 - 95%RH (non-condensing)
Storage Conditions	-30°C to 70°C, below 0 - 95%RH (non-condensing)
Operating Voltage	DC 5V±0.1V, with a ripple less than 50mv
Operating Current	Average operating current 12μA@5min measurement cycle
Signal Output	① UART_TTL② IIC ③ PWM
Product Dimensions	W33H19.7D9.4(mm) (excluding pins)
