Name: KGD CM 102 Single Channel Infrared CO₂ Sensor With 1s Data Refresh Frequency And DC 5V±0.1V Operating Voltage
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-CM-102
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KGD CM 102 Single Channel Infrared CO₂ Sensor With 1s Data Refresh Frequency And DC 5V±0.1V Operating Voltage

Single-channel CO₂ Sensor

DC 5V±0.1V CO₂ Sensor

1s Data Refresh Frequency CO₂ Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-CM-102

Request A Quote

Product Details

Detection Range:

400 - 5000ppm (can Be Extended To 10000ppm, And The Range Is Optional)

Power-on Stabilization Time:

≤ 30s

Data Refresh Frequency:

Signal Output:

① UART_TTL ② IIC ③ PWM

Operating Conditions:

-10°C To 50°C, Below 0 - 95%RH (non-condensing)

Operating Voltage:

DC 5V±0.1V

Highlight:

Single-channel CO₂ Sensor

DC 5V±0.1V CO₂ Sensor

1s Data Refresh Frequency CO₂ Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

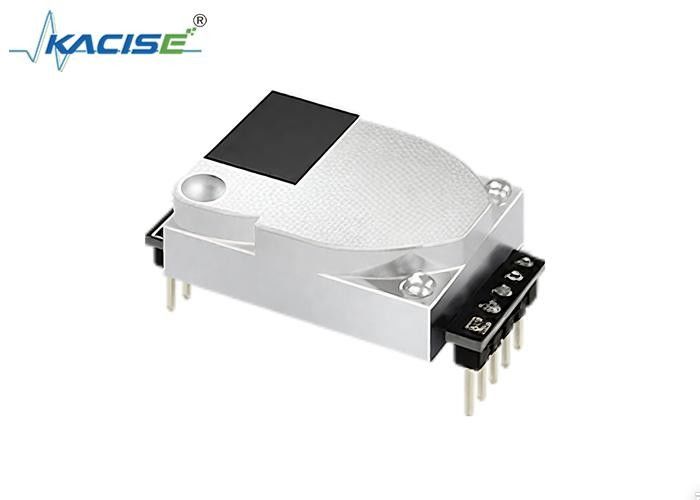

Single-channel Infrared CO₂ Sensor KGD - CM - 102

Product Introduction

The single-channel infrared CO₂ sensor KGD - CM - 102 is a single-channel NDIR sensor. Having been tested in the market for many years, it has always won the favor of customers with its stable performance, high cost-effectiveness, and reliable and worry-free features.

KGD CM 102 Single Channel Infrared CO₂ Sensor With 1s Data Refresh Frequency And DC 5V±0.1V Operating Voltage 0

Product Features

NDIR core technology.
High selectivity, without cross-interference.
Matrix correction within the full range of temperature.
Short preheating time.
Multiple versions available, such as with pins, without pins, with a base plate, etc.
Small size, easy to integrate.

Technical Parameters

Detection Range	400 - 5000ppm (can be extended to 10000ppm, and the range is optional)
Power-on Stabilization Time	≤ 30s
Data Refresh Frequency	1s
Detection Accuracy	For residential use: ±(50ppm + 5% of the reading) For commercial use (ventilation control, energy consumption reduction): ±(50ppm + 3% of the reading) For safety and metering use: ±(30ppm + 3% of the reading)"
Operating Conditions	-10°C to 50°C, below 0 - 95%RH (non-condensing)
Storage Conditions	-30°C to 70°C, below 0 - 95%RH (non-condensing)
Operating Voltage	DC 5V±0.1V
Average Operating Current	＜45mA@(5V)
Signal Output	① UART_TTL ② IIC ③ PWM
Product Dimensions	W33H19.7D9.4(mm) (excluding pins)
