Name: Accurate Dual-light Source Infrared CO₂ Sensor KGD CM 105 for Industrial Applications
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-CM-105
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Accurate Dual-light Source Infrared CO₂ Sensor KGD CM 105 for Industrial Applications

Dual-light Source Infrared CO₂ Sensor

Industrial Applications Infrared CO₂ Sensor

Accurate Infrared CO₂ Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-CM-105

Request A Quote

Product Details

Detection Range:

400 - 5000ppm (can Be Extended To 10000ppm)

Power-on Stabilization Time:

≤ 30s

Data Refresh Frequency:

Operating Voltage:

DC 5V±0.1V

Average Operating Current:

≤45mA@(5V)

Signal Output:

① UART_TTL(3.3V/5V) ② IIC ③ PWM

Highlight:

Dual-light Source Infrared CO₂ Sensor

Industrial Applications Infrared CO₂ Sensor

Accurate Infrared CO₂ Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

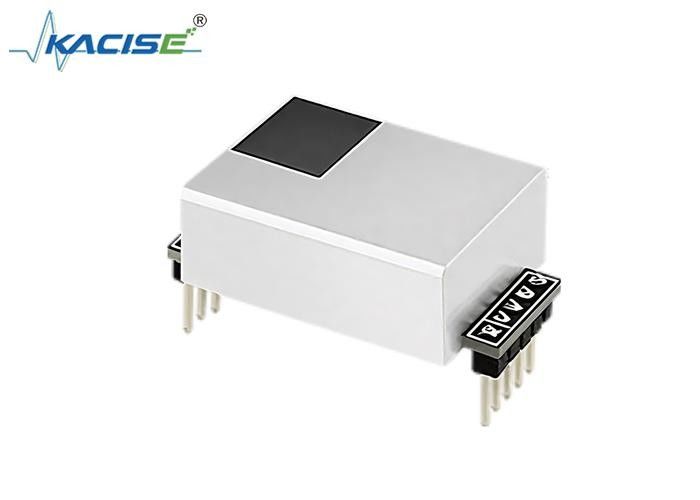

Dual-light Source Infrared CO₂ Sensor KGD - CM - 105

Product Introduction

KACISE Optoelectronic has once again made innovations in the field of indoor environmental quality monitoring, bringing customers solutions with better performance and lower costs. The dual-engine, dual-light source infrared CO₂ sensor CM1109 based on the non-dispersive infrared (NDIR) technology has higher precision, better stability, and longer service life.

Accurate Dual-light Source Infrared CO₂ Sensor KGD CM 105 for Industrial Applications 0

Product Features

Dual-engine and dual-beam NDIR core technology.
Small size, compact structure, and easy to install.
High precision, high long-term operation stability, and long service life.
Matrix calibration within the entire measurement range and temperature range.

Technical Parameters

Detection Range	400 - 5000ppm (can be extended to 10000ppm)
Power-on Stabilization Time	≤ 30s
Data Refresh Frequency	1s
Detection Accuracy	For residential use: ±(50ppm + 5% of the reading) For commercial use (ventilation control, energy consumption reduction): ±(50ppm + 3% of the reading) For safety and metering use: ±(30ppm + 3% of the reading)
Operating Conditions	-10°C to 50°C, below 0 - 95%RH (non-condensing)
Storage Conditions	-30°C to 70°C, below 0 - 95%RH (non-condensing)
Operating Voltage	DC 5V±0.1V
Average Operating Current	≤45mA@(5V)
Signal Output	① UART_TTL(3.3V/5V) ② IIC ③ PWM
Product Dimensions	W33H20.3D11.4(mm) (excluding pins)
