Name: HCHO Sensor KGD HCHO 101 for Accurate Detection 50±10%RH in 100s Preheating Time
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-HCHO-101
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

HCHO Sensor KGD HCHO 101 for Accurate Detection 50±10%RH in 100s Preheating Time

Accurate Detection HCHO Sensor

100s Preheating Time HCHO Sensor

50±10%RH HCHO Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-HCHO-101

Request A Quote

Product Details

Detection Range:

HCHO: 0 - 1ppm

HCHO Detection Accuracy:

±25ppb Or The Larger Value Of ±25% (Under The Environmental Conditions Of 25±2℃, 50±10%RH)

Resolution:

HCHO: 1ppb

Response Time T90:

50s (@25±2℃, 50±10%RH Environmental Conditions)

Preheating Time:

100s

Operating Conditions:

-10℃ To 50℃; Below 15 - 95%RH (non-condensing)

Highlight:

Accurate Detection HCHO Sensor

100s Preheating Time HCHO Sensor

50±10%RH HCHO Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

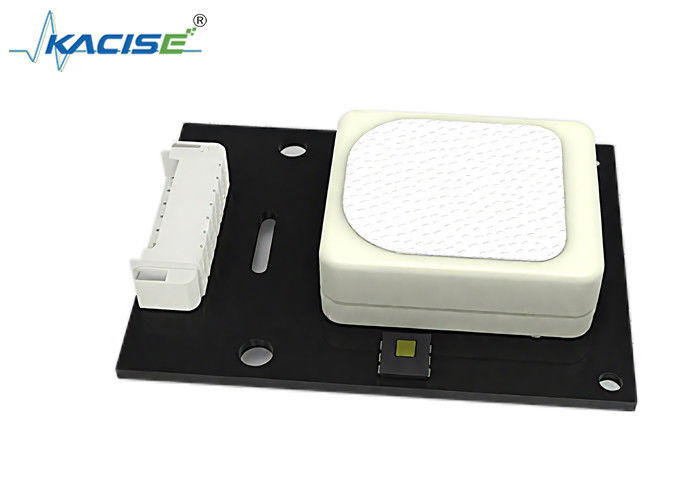

Electrochemical Formaldehyde Sensor KGD - HCHO - 101

Product Introduction

The KGD - HCHO - 101, the fourth-generation upgraded formaldehyde sensor, is a gas concentration sensor based on the electrochemical principle. It adopts a tightly sealed structural design, combined with a unique electrolyte packaging technology. Through mathematical algorithms and scientific multi-point calibration, it achieves high-precision formaldehyde output. It is equipped with a built-in temperature and humidity digital sensor. Combined with intelligent algorithms, the product provides more accurate detection and more convenient application.

HCHO Sensor KGD HCHO 101 for Accurate Detection 50±10%RH in 100s Preheating Time 0

Product Features

Resolution as high as 1ppb.
Full-range temperature and humidity compensation.
Unique electrolyte packaging design with good anti-interference ability.
Multiple communication methods are optional: URAT, IIC, PWM.
Service life can reach 6 years (in the air).

Technical Parameters

Detection Range	HCHO: 0 - 1ppm
HCHO Detection Accuracy	±25ppb or the larger value of ±25% (Under the environmental conditions of 25±2℃, 50±10%RH)
Resolution	HCHO: 1ppb
Response Time T90	50s (@25±2℃, 50±10%RH environmental conditions)
Preheating Time	100s
Operating Conditions	-10℃ to 50℃; below 15 - 95%RH (non-condensing)
Storage Conditions	-20℃ to 60℃; below 15 - 95%RH (non-condensing)
Operating Voltage	DC(+3. 5V ~ +5.5V)
Operating Current	<15mA
Communication Method	1. UART_TTL(3.3V) 2. PWM 3. IIC (Reserved)
Product Dimensions	W23H32D8
Product Life	6 years
