Name: 0.1%LEL Resolution Methane Sensor KGD JW 101 -10°C 60°C Operating Environment Temperature
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-JM-101
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

0.1%LEL Resolution Methane Sensor KGD JW 101 -10°C 60°C Operating Environment Temperature

KGD JW 101 Methane Sensor

60°C Methane Sensor

0.1%LEL Resolution Methane Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-JM-101

Request A Quote

0.1%LEL Resolution Methane Sensor KGD JW 101 -10°C 60°C Operating Environment Temperature

Product Details

Working Principle:

Non - Dispersive Infrared Detection Technology (NDIR)

Measurement Range:

0 - 100%LEL

Accuracy:

0%LEL~25%LEL: ±3%LEL 25%~50%LEL: ±5%LEL 51%LEL~100%LEL: ±10%Reading

Operating Environment Temperature:

-10°C ~ 60°C

Operating Environment Humidity:

0 - 95%RH (non - Condensing)

Resolution:

0.1%LEL

Highlight:

KGD JW 101 Methane Sensor

60°C Methane Sensor

0.1%LEL Resolution Methane Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

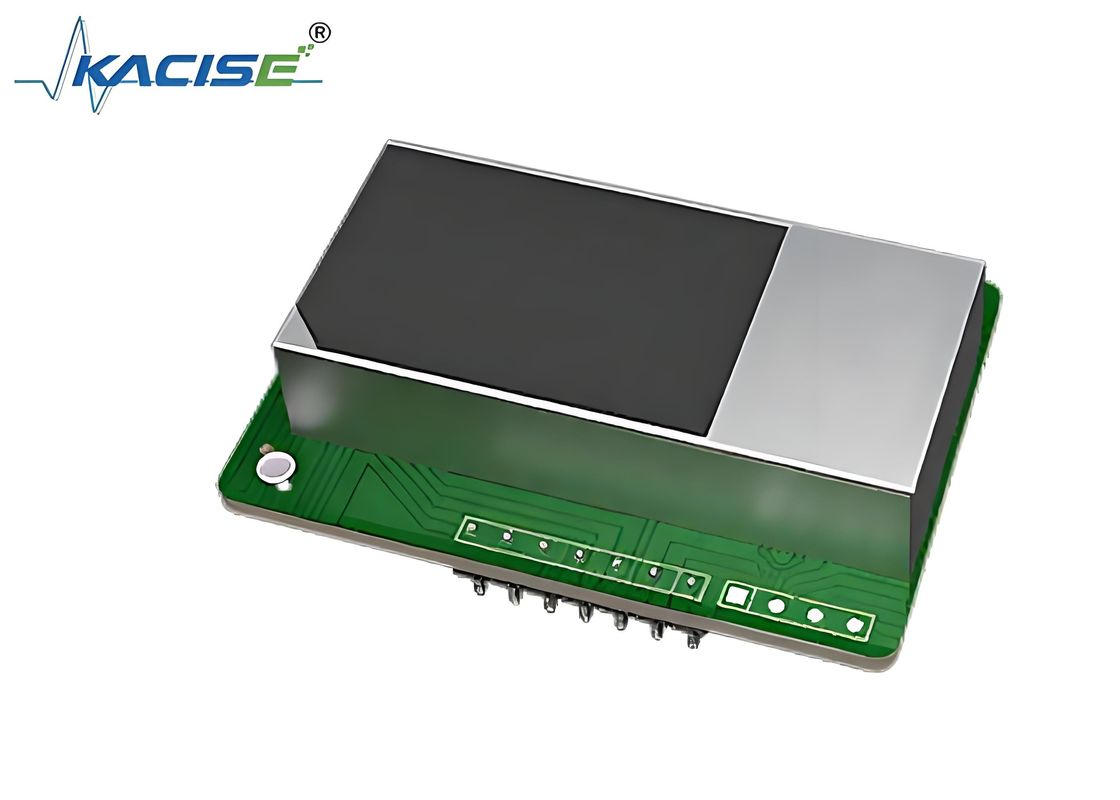

Methane Sensor KGD - JW - 101

Product Introduction

The KGD - JW - 101 methane sensor is a four - channel methane sensor developed based on non - dispersive infrared (NDIR) detection technology. It can monitor the methane gas leaked in the environment in real time. This sensor features high accuracy and excellent long - term stability, and is widely used in fields such as household gas alarms, portable gas detectors, natural gas leakage detection, and gas pressure regulating cabinets.

0.1%LEL Resolution Methane Sensor KGD JW 101 -10°C 60°C Operating Environment Temperature 0

Product Features

NDIR technology with independent intellectual property rights.
High selectivity for methane gas, no high - concentration poisoning, and fast recovery time when the concentration drops from a high - concentration environment.
Four - channel detection technology, resistant to ethanol and acetic acid interference, avoiding false alarms.
High detection accuracy can be guaranteed within the full temperature and full - scale range.
Long service life (> 10 years).
Small size, compact structure, and easy to install.

Technical Parameters

Working Principle	Non - dispersive infrared detection technology (NDIR)
Measurement Range	0 - 100%LEL
Accuracy	0%LEL~25%LEL: ±3%LEL 25%~50%LEL: ±5%LEL 51%LEL~100%LEL: ±10%Reading
Operating Environment Temperature	-10°C ~ 60°C
Operating Environment Humidity	0 - 95%RH (non - condensing)
Resolution	0.1%LEL
Response Time	T90 ≤ 30s
Power Supply Range	DC 5V - 5.5V
Average Operating Current	< 100mA
Dust and Waterproof Grade	IP52
Product Dimensions	4733*10.8mm (excluding pins)
Reference Standards	GB/T 34004 - 2017, GB 15322.2 - 2019, UL1484, EN50194
Environmental Protection Standards	RoHS 2.0, REACH
