Name: Infrared Dust Sensor KGD PM 101 for Detection Range 0 1000mg/m3 and Operating Conditions -10°C to 60°C
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-PM-101
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Infrared Dust Sensor KGD PM 101 for Detection Range 0 1000mg/m3 and Operating Conditions -10°C to 60°C

Infrared Dust Sensor KGD PM 101

Operating Conditions Dust Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-PM-101

Request A Quote

Product Details

Detection Range:

0 - 1000mg/m³

Power-on Stabilization Time:

Single Response Time:

<0.3s

Operating Conditions:

-10°C To 60°C, Below 95%RH

Storage Conditions:

-20°C To 80°C, Below 95%RH (non-condensing)

Highlight:

Infrared Dust Sensor KGD PM 101

Operating Conditions Dust Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

Infrared Dust Sensor KGD - PM - 101

Product Introduction

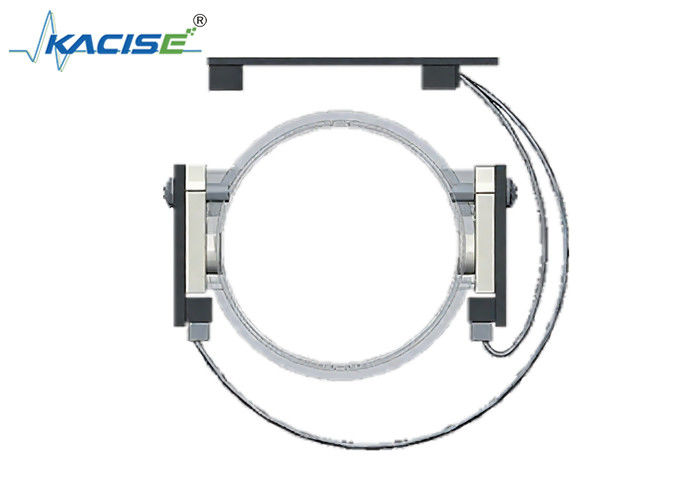

The infrared dust sensor KGD - PM - 101 utilizes the principle of optical opposed beam. It can accurately detect the number of particles of dust with different particle sizes, such as 10um - 60um, 60um - 180um, 180um - 500um and >500um, which pass through the pipeline of the suction handle or the extension rod of the vacuum cleaner.

Infrared Dust Sensor KGD PM 101 for Detection Range 0 1000mg/m3 and Operating Conditions -10°C to 60°C 0

Product Features

Fast response speed.
Simple and convenient for development and use.
Four-channel particle number output.

Technical Parameters

Detection Range	≥5um
Detection Range	0 - 1000mg/m³
Power-on Stabilization Time	1s
Single Response Time	<0.3s
Operating Conditions	-10°C to 60°C, below 95%RH
Storage Conditions	-20°C to 80°C, below 95%RH (non-condensing)
Operating Voltage	DC 5V±5%, with a ripple below 50mV
Operating Current	<60mA
Communication Method	PWM: 3.3V level (UART reserved)
Product Dimensions	W37H25D5.5 mm (PCBA)
