Name: Upgrade Your Air Monitoring with Laser Dust Sensor KGD PM 115's Data Output PM2.5 and Detection Range 0 1000μg/m3
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-PM-115
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Upgrade Your Air Monitoring with Laser Dust Sensor KGD PM 115's Data Output PM2.5 and Detection Range 0 1000μg/m3

PM2.5 Laser Dust Sensor

KGD PM 115 Laser Dust Sensor

115 Laser Dust Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-PM-115

Request A Quote

Product Details

Detection Range:

0 - 1000μg/m³

Data Output:

PM1.0, PM2.5, PM10

Power-on Stabilization Time:

≤8s

Data Refresh Frequency:

Operating Conditions:

-10°C To 60°C, 5 - 95%RH

Standby Current:

≤200μA

Highlight:

PM2.5 Laser Dust Sensor

KGD PM 115 Laser Dust Sensor

115 Laser Dust Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

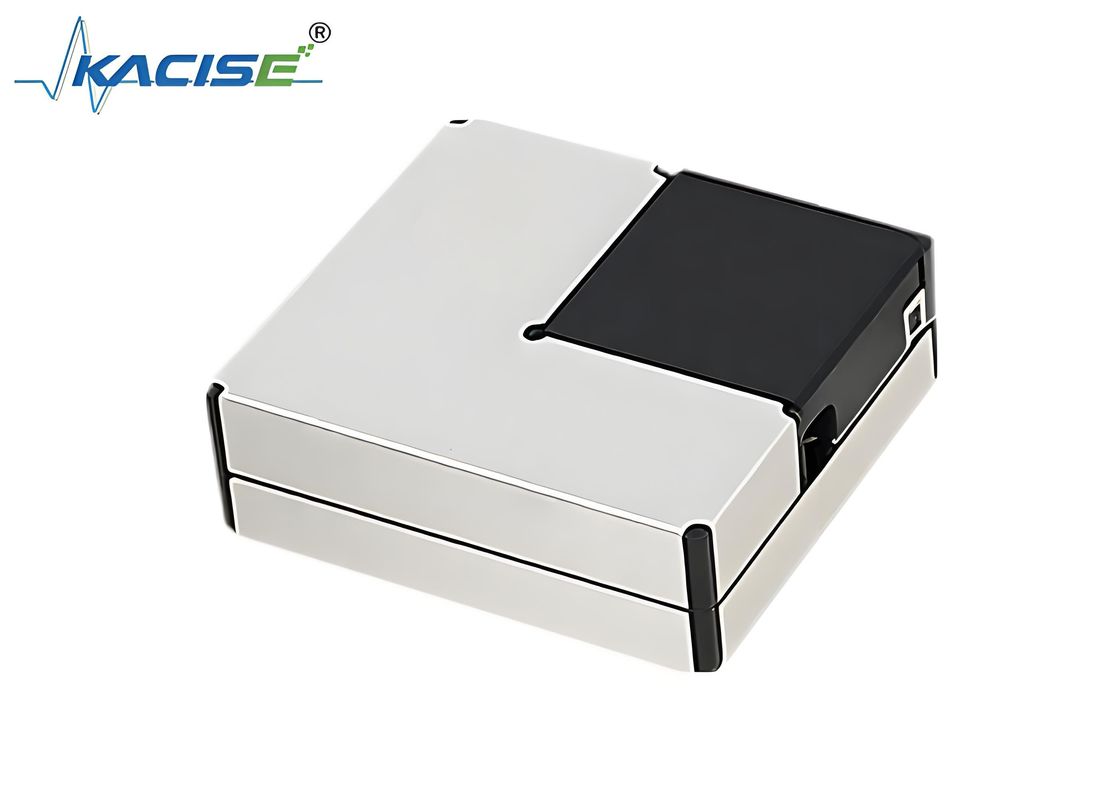

Laser Dust Sensor KGD - PM - 115

Product Introduction

The KGD - PM - 115 is a miniaturized laser dust sensor. Adopting the principle of optical scattering, it can accurately detect and calculate the number of suspended particulate matter particles with different particle sizes in the air per unit volume, and realize the real-time output of the mass concentration of PM2.5 particulate matter through mathematical algorithms and scientific calibration.

Upgrade Your Air Monitoring with Laser Dust Sensor KGD PM 115's Data Output PM2.5 and Detection Range 0 1000μg/m3 0

Product Features

Rapid response and high accuracy.
Diversified designs of air inlet and outlet directions to meet different installation requirements.
Metal shielding for anti-interference.
Miniaturized design of the product size.
Benchmarking instruments are optional.

Technical Parameters

Detection Range	0 - 1000μg/m³
Data Output	PM1.0, PM2.5, PM10
Power-on Stabilization Time	≤8s
Data Refresh Frequency	1s
Detection Accuracy	±10μg/m³ or ±10% of the reading (Under the environmental conditions of 25℃±2℃, 50±10%RH, benchmarked against TSI8530)
Operating Conditions	-10°C to 60°C, 5 - 95%RH
Storage Conditions	-30°C to 70°C, 0 - 95%RH (non-condensing)
Operating Voltage	DC 5V±0.5V, with a ripple < 50mV
Operating Current	≤100mA
Standby Current	≤200μA
Signal Output	① UART_TTL (3.3V/5V) ② IIC(3.3V)
Product Dimensions	W38H35D12(mm)
