Name: Compact Laser Dust Sensor KGD PM 114 with Detection Range 0 1000μg/m3 and Operating Current ≤100mA
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-PM-114
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Compact Laser Dust Sensor KGD PM 114 with Detection Range 0 1000μg/m3 and Operating Current ≤100mA

PM 114 Laser Dust Sensor

1000μg/m3 Laser Dust Sensor

Compact Laser Dust Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-PM-114

Request A Quote

Product Details

Detection Range:

0 - 1000μg/m³

Power-on Stabilization Time:

≤8s

Data Refresh Frequency:

Storage Conditions:

-30°C To 70°C, 0 - 95%RH (non-condensing)

Operating Voltage:

DC 5.0V±0.1V; With A Ripple < 100mV

Operating Current:

≤100mA

Highlight:

PM 114 Laser Dust Sensor

1000μg/m3 Laser Dust Sensor

Compact Laser Dust Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

Laser Dust Sensor KGD - PM - 114

Product Introduction

The KGD - PM - 114 laser dust sensor is based on the principle of optical scattering. Combined with KACISE unique intelligent dust source identification technology, it can accurately detect and calculate the number of suspended particulate matter particles with different particle sizes per unit volume in various environments. Through mathematical algorithms and scientific calibration, it can accurately output the mass concentration of PM2.5. With an innovative self-cleaning structural design, it can effectively prevent the impact of dust accumulation for a long time.

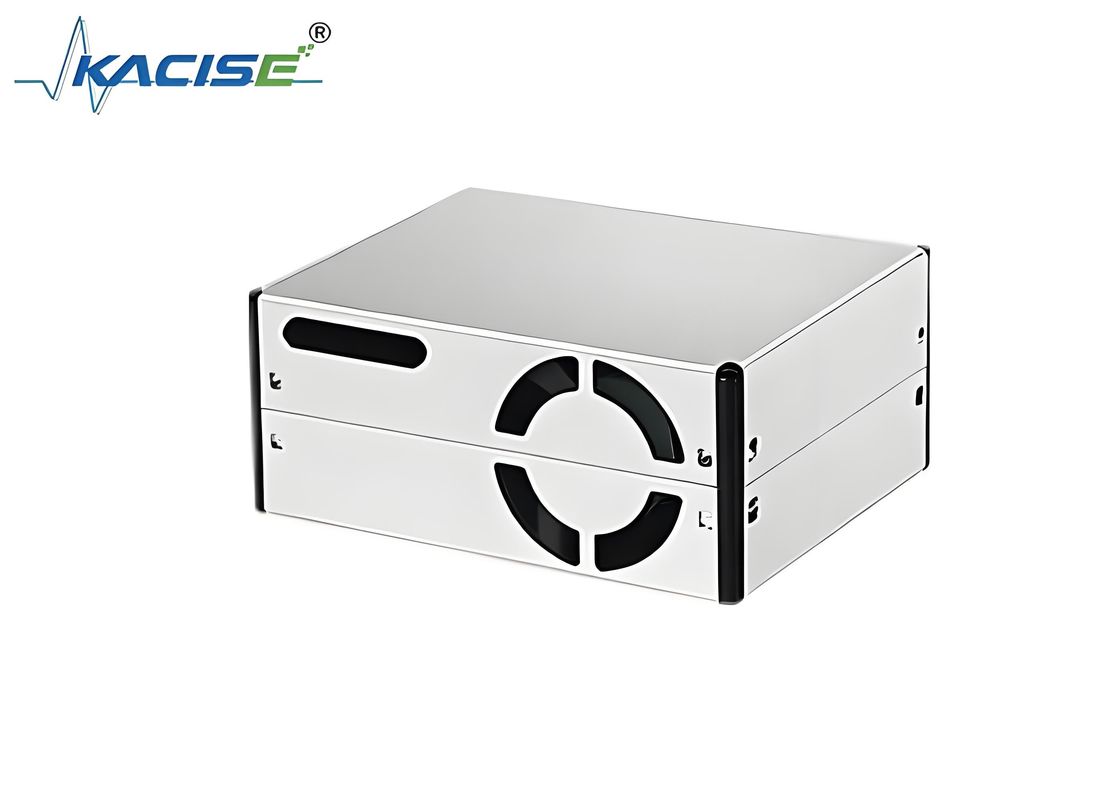

Compact Laser Dust Sensor KGD PM 114 with Detection Range 0 1000μg/m3 and Operating Current ≤100mA 0

Product Features

Rapid response and high accuracy.
Metal shielding for anti-interference.
Benchmarking instruments are optional.
Self-cleaning structure to prevent dust accumulation.
Air inlet and outlet on the same side, convenient for application.

Technical Parameters

Detection Range	0 - 1000μg/m³
Power-on Stabilization Time	≤8s
Data Refresh Frequency	1s
Detection Accuracy	±10μg/m³ or ±10% of the reading (Under the environmental conditions of 25℃±2℃, 50±10%RH, benchmarked against TSI8530)
Operating Conditions	-10°C to 60°C, 5 - 95%RH
Storage Conditions	-30°C to 70°C, 0 - 95%RH (non-condensing)
Operating Voltage	DC 5.0V±0.1V; with a ripple < 100mV
Operating Current	≤100mA
Standby Current	<25mA
Signal Output	① UART_TTL(3.3V/5V) ② IIC (Reserved) ③ PWM (Reserved)
Product Dimensions	W50H38D21(mm)
Data Output	PM1.0, PM2.5, PM10
