Name: 1s Data Refresh Frequency Laser Dust Sensor KGD PM 112 for Accurate PM1.0 Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-PM-112
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

1s Data Refresh Frequency Laser Dust Sensor KGD PM 112 for Accurate PM1.0 Output

Accurate PM1.0 Output Laser Dust Sensor

KGD PM 112 Laser Dust Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-PM-112

Request A Quote

Product Details

Detection Range:

0 - 1000μg/m³

Data Output:

PM1.0, PM2.5, PM10

Data Refresh Frequency:

Power-on Stabilization Time:

≤8s

Operating Conditions:

-10℃ To 50℃, 0 - 95%RH (non-condensing)

Product Dimensions:

W48H40D12 Mm

Highlight:

Accurate PM1.0 Output Laser Dust Sensor

KGD PM 112 Laser Dust Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

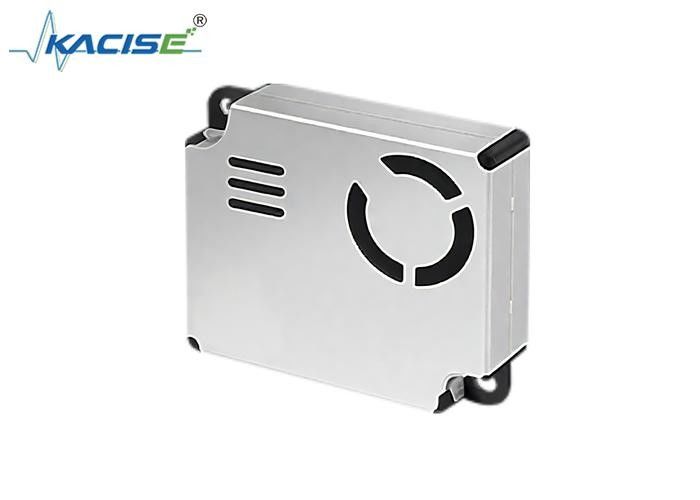

Laser Dust Sensor KGD - PM - 112

Product Introduction

The KGD - PM - 112 laser dust sensor is based on the principle of optical scattering. It adopts a full-metal shield and an ultra-thin (12mm) design. It can accurately detect and calculate the number of suspended particulate matters with different particle sizes in the air per unit volume, and through mathematical algorithms and scientific calibration, it can output the mass concentrations of PM1.0, PM2.5, and PM10 particulate matters in real time.

1s Data Refresh Frequency Laser Dust Sensor KGD PM 112 for Accurate PM1.0 Output 0

Product Features

The minimum resolvable particle size is 0.3μm.
Outputs PM1.0, PM2.5, and PM10 in real time.
Constant current sampling structure.
High accuracy, high sensitivity, and fast response.
Full-metal shielding, with good anti-interference ability.
Ultra-thin design, with a height of only 12mm.

Technical Parameters

Detection Range	0 - 1000μg/m³
Data Output	PM1.0, PM2.5, PM10
PM1.0 & PM2.5 Detection Accuracy	≤ 100μg/m³: ± 10μg/m³ ＞100μg/m³: ± 10% of the reading
PM10 Detection Accuracy	≤ 100μg/m³: ± 20μg/m³ ＞100μg/m³: ± 20% of the reading (Tested under typical working conditions, that is, 25±2℃, 50±10%RH, with Gold Sample* as the reference)
Data Refresh Frequency	1s
Power-on Stabilization Time	≤8s
Operating Conditions	-10℃ to 50℃, 0 - 95%RH (non-condensing)
Storage Conditions	-20℃ to 60℃, 0 - 95%RH (non-condensing)
Operating Voltage	DC 5V±0.1V, with a ripple < 50mV
Operating Current	≤100mA
Standby Current	≤200μA
Communication Interface	UART: +3.3V level IIC: +3.3V level
Product Dimensions	W48H40D12 mm
