R1234ZE Refrigerant Leakage Monitoring Sensor KGD-AM-205 Non-dispersive Infrared Detection And IP54 Protection

IP54 Protection Refrigerant Leakage Monitoring Sensor

R1234ZE Refrigerant Leakage Monitoring Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-AM-205

Request A Quote

Product Details

Detection Principle:

Non-dispersive Infrared Detection Technology (NDIR)

Detection Range:

0 - 100%LFL (100%LFL = 6.5%Vol)

Service Life:

10 Years

IP Protection Grade:

IP54 (IP65 Can Be Customized)

Operating Conditions:

-30℃ To 60°C; 0 - 95%RH (non-condensing)

Product Certifications:

CE, REACH, ROHS

Highlight:

IP54 Protection Refrigerant Leakage Monitoring Sensor

R1234ZE Refrigerant Leakage Monitoring Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

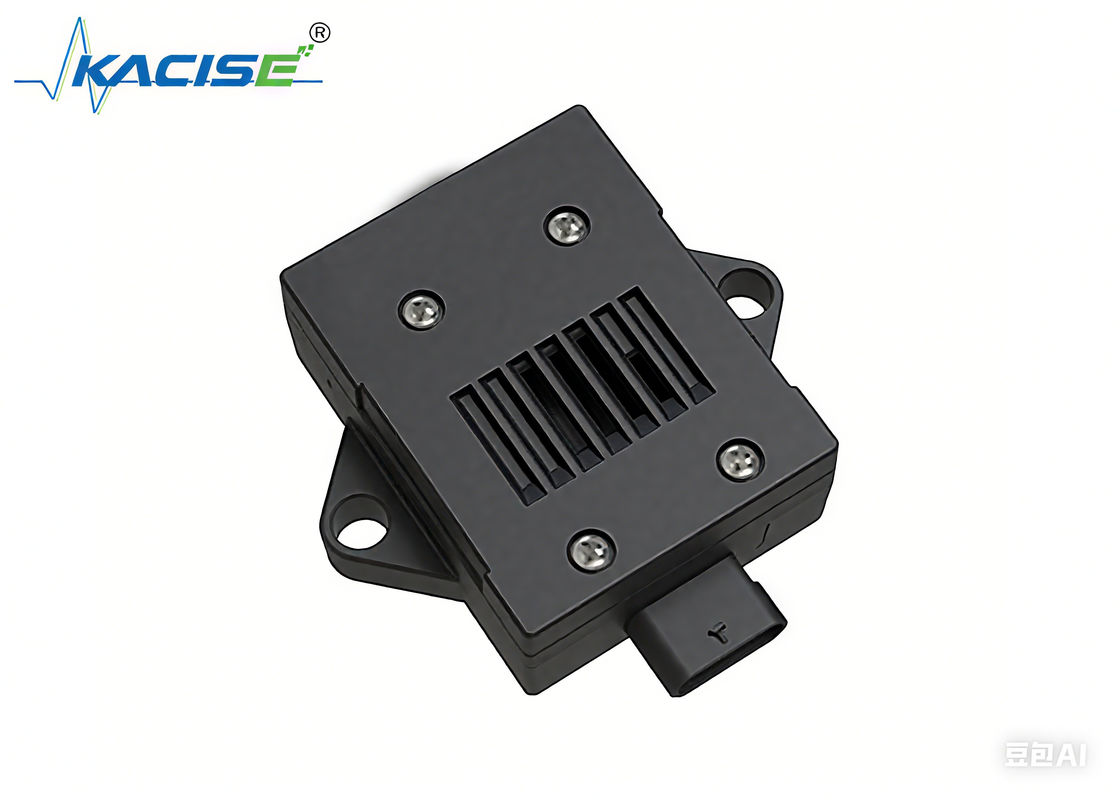

Refrigerant (R1234ZE) Leakage Monitoring Sensor KGD - AM - 205

Product Introduction

The refrigerant (R1234ZE) leakage monitoring sensor KGD - AM - 205 is a gas sensor for real-time monitoring of R1234ZE refrigerant leakage. It adopts the patented technology of Sifang Optoelectronic's infrared dual-beam, which not only extends the product's service life but also better solves the impact of temperature, humidity, and device aging on the measurement accuracy of the sensor. It has better long-term stability and higher reliability.

R1234ZE Refrigerant Leakage Monitoring Sensor KGD-AM-205 Non-dispersive Infrared Detection And IP54 Protection 0

Product Features

Long service life, up to 15 years.
Fast response speed, with no false alarms or missed alarms.
High precision, with high detection accuracy within the full temperature and humidity range.
Anti-condensation and high reliability.
Anti-interference and good gas selectivity.

Technical Parameters

Detection Principle	Non-dispersive infrared detection technology (NDIR)
Detection Range	0 - 100%LFL (100%LFL = 6.5%Vol)
Service Life	10 years
IP Protection Grade	IP54 (IP65 can be customized)
Operating Conditions	-30℃ to 60°C; 0 - 95%RH (non-condensing)
Average Current	≤70mA (without anti-condensation function); ≤280mA (with anti-condensation function)
Output Modes	1. UART@3.3V (default)Analog voltage output 0.8 - 4V (default) PWM (can be customized by software) 4 - 20mA current output (can be customized by hardware) RS485 communication (can be customized by hardware)
Product Certifications	CE, REACH, ROHS
