Refrigerant (R744) Leakage Monitoring Sensor KGD - AM - 206

Refrigerant Leakage Monitoring Sensor

R744 Leakage Monitoring Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Model Number:

Request A Quote

Refrigerant (R744) Leakage Monitoring Sensor KGD - AM - 206

Product Details

Detection Principle:

Non-dispersive Infrared Detection Technology (NDIR)

Detection Range:

0 - 4%Vol

Service Life:

10 Years

IP Protection Grade:

IP54 (IP65 Can Be Customized)

Operating Conditions:

-30℃ To 60°C; 0 - 95%RH (non-condensing)

Product Certifications:

CE, REACH, ROHS

Highlight:

Refrigerant Leakage Monitoring Sensor

R744 Leakage Monitoring Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

Refrigerant (R744) Leakage Monitoring Sensor KGD - AM - 206

Product Introduction

The refrigerant (R744) leakage monitoring sensor KGD - AM - 206 is a gas sensor for real-time monitoring of R744 refrigerant leakage. It adopts the patented technology of Sifang Optoelectronic's infrared dual-beam. While improving the product's service life, it can better address the impact of temperature, humidity, and device aging on the sensor's measurement accuracy, ensuring better long-term stability and higher reliability during use.

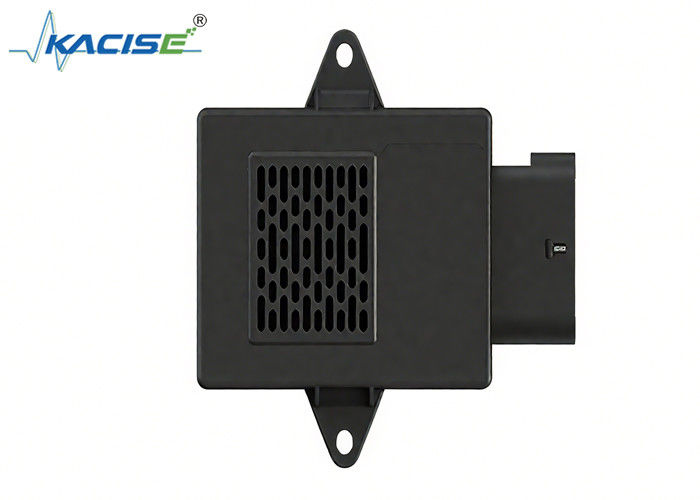

Refrigerant (R744) Leakage Monitoring Sensor KGD - AM - 206 0

Product Features

Long service life, up to 15 years.
Fast response speed, with no false alarms or missed alarms.
High precision, featuring high detection accuracy within the full temperature and humidity range.
Anti-condensation and high reliability.
Anti-interference and good gas selectivity.

Technical Parameters

Detection Principle	Non-dispersive infrared detection technology (NDIR)
Detection Range	0 - 4%Vol
Service Life	10 years
IP Protection Grade	IP54 (IP65 can be customized)
Operating Conditions	-30℃ to 60°C; 0 - 95%RH (non-condensing)
Average Current	≤70mA (without anti-condensation function); ≤280mA (with anti-condensation function)
Output Modes	1. UART@3.3V (default) Analog voltage output 0.8 - 4V (default) PWM (can be customized by software) 4 - 20mA current output (can be customized by hardware) RS485 communication (can be customized by hardware)
Product Certifications	CE, REACH, ROHS
