Name: KGD OPC 201 28.3L Particle Counter with Multi channel Counting Efficiency of 50% 0.3μm and 100% ≥0.5μm
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-OPC-201
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KGD OPC 201 28.3L Particle Counter with Multi channel Counting Efficiency of 50% 0.3μm and 100% ≥0.5μm

0.3μm Particle Counter

Multi channel Particle Counter

28.3L Particle Counter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-OPC-201

Request A Quote

Product Details

Number Of Channels:

Multi - Channel (0.3μm, 0.5μm, 1.0μm, 5.0μm, 10μm)

Counting Efficiency:

50%@0.3μm 100%@≥0.5μm (Under The Environmental Conditions Of 25±2℃, 50±10%RH)

Detection Range:

0 - 1,000,000 Pcs/28.3L

Power - On Stabilization Time:

≤8s

Data Refresh Frequency:

Operating Conditions:

0℃ - 45℃; 0 - 95%RH (non - Condensing)

Highlight:

0.3μm Particle Counter

Multi channel Particle Counter

28.3L Particle Counter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

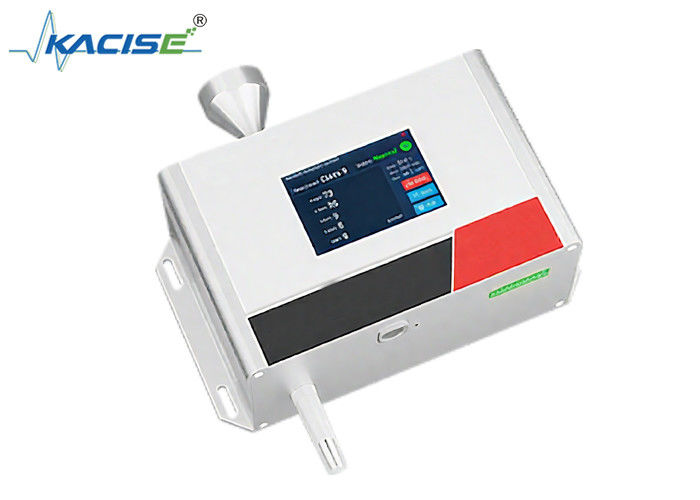

28.3L Particle Counter KGD - OPC - 201

Product Introduction

The online particle counter KGD - OPC - 201 adopts the principle of optical scattering. It can accurately detect and calculate the number of suspended particulate matter with different particle sizes in the air per unit volume. It has a built - in dust source intelligent recognition module unique to KACISE Optoelectronic, and a high - flow gas sampling rate of 28.3L/min. It can simultaneously output the particle numbers of five channels: 0.3μm, 0.5μm, 1.0μm, 5.0μm, and 10μm (the default unit is pcs/28.3L, and it can be switched to pcs/m³). The indication error meets the requirements of the JJF - 1190 standard.

KGD OPC 201 28.3L Particle Counter with Multi channel Counting Efficiency of 50% 0.3μm and 100% ≥0.5μm 0

Product Features

Built - in ultrasonic gas flow sensor for constant - current sampling.
Long - life, high - power linear laser for efficient particle recognition.
Low - noise turbine fan for sampling, with good stability in continuous monitoring.
Open communication protocol, facilitating customer integration.

Technical Parameters

Number of Channels	Multi - channel (0.3μm, 0.5μm, 1.0μm, 5.0μm, 10μm)
Counting Efficiency	50%@0.3μm 100%@≥0.5μm (Under the environmental conditions of 25±2℃, 50±10%RH)
Detection Range	0 - 1,000,000 pcs/28.3L
Power - on Stabilization Time	≤8s
Data Refresh Frequency	1s
Operating Conditions	0℃ - 45℃; 0 - 95%RH (non - condensing)
Storage Conditions	-20 - 60℃, 0 - 95%RH (non - condensing)
Operating Voltage	DC 24.0V±15%
Average Operating Current	≤3A
Communication Interface	RS485 interface (standard configuration) RJ45 (standard configuration)
Product Lifespan	≥3 years
Sampling Flow	28.3L/min
Sampling Head	Isokinetic sampling probe
External Sampling Tube	Inner diameter: ф10mm Length: ≤3m
Operating Mode	Adjustable (Default: work for 2 minutes/sleep for 28 minutes)
Display	3.5 - inch color screen
Calibration	JJF 1190 - 2008
