Name: 0-5L/min Gas Flow Detection Range Ultrasonic Flow Sensor KGD-OPC-206 for Non-Condensing Environments
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-OPC-206
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

0-5L/min Gas Flow Detection Range Ultrasonic Flow Sensor KGD-OPC-206 for Non-Condensing Environments

KGD-OPC-206 Ultrasonic Flow Sensor

5L/min Ultrasonic Flow Sensor

Non-Condensing Environments Ultrasonic Flow Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-OPC-206

Request A Quote

Product Details

Detection Range:

Gas Flow: 0~5L/min①

Detection Precision:

Gas Flow: ±3% OR ±0.06L/min@(5~45)℃

Response Time:

Gas Flow: ≤0.3s

Operating Conditions:

-20°C~60℃; 0~95%RH (non-condensing)

Storage Conditions:

-20°C~60℃; 0~95%RH (non-condensing)

Operating Voltage:

DC 4.75~12.6V, Ripple ≤50mV

Highlight:

KGD-OPC-206 Ultrasonic Flow Sensor

5L/min Ultrasonic Flow Sensor

Non-Condensing Environments Ultrasonic Flow Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

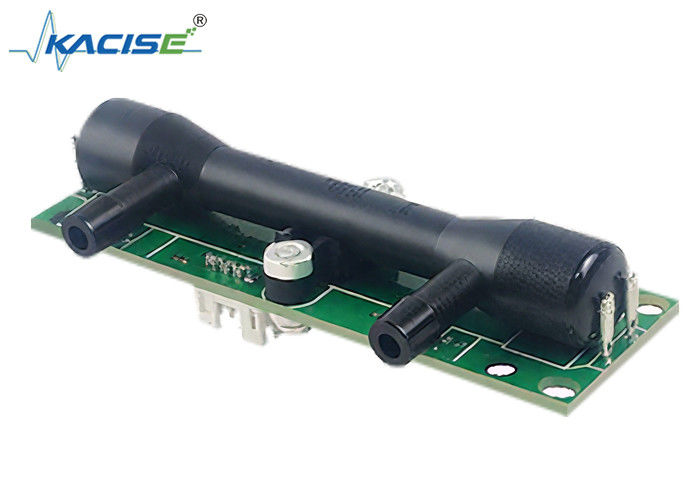

Ultrasonic Flow Sensor KGD-OPC-206

Product Introduction

0-5L/min Gas Flow Detection Range Ultrasonic Flow Sensor KGD-OPC-206 for Non-Condensing Environments 0

The KGD-OPC-206 ultrasonic flow sensor is an economical and practical sensor used for measuring gas flow. The product has the characteristics of small size, fast response speed, high precision, zero offset, etc. Based on the mature Gasboard-7500 ultrasonic flow sensor module, the product has been optimized and upgraded on this basis, and the EMC protection has been further strengthened, which is used to replace and expand the application of the original series in more scenarios.

Product Features

Measure the gas flow without being affected by gas components such as humidity.
Meet the certification requirements of CMC, CE and EMC.
Small in size, quick in response, stable in measurement and high in accuracy.
Long service life, calibration-free and maintenance-free.

Technical Parameters

Detection Range	Gas Flow: 0~5L/min①
Detection Precision	Gas Flow: ±3% OR ±0.06L/min@(5~45)℃
Response Time	Gas Flow: ≤0.3s
Operating Conditions	-20°C~60℃; 0~95%RH (non-condensing)
Storage Conditions	-20°C~60℃; 0~95%RH (non-condensing)
Operating Voltage	DC 4.75~12.6V, ripple ≤50mV
Operating Current	≤ 35mA
Communication Interface	UART_TTL( 3.3V )
Product Dimensions	W80H22D25(mm)
