Name: KGD PM 203 Laser Particle Counting Sensor For Storage Conditions 0 95%RH Non-condensing Performance
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-PM-203
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KGD PM 203 Laser Particle Counting Sensor For Storage Conditions 0 95%RH Non-condensing Performance

Storage Conditions Laser Particle Counting Sensor

PM 203 Laser Particle Counting Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-PM-203

Request A Quote

Product Details

Detection Range:

0.3 - 10μm

Counting Efficiency:

50%@0.3μm 100%@≥0.5μm (Referenced To TSI9306, Under The Environmental Conditions Of 25℃±2℃, 50±10%RH)

Data Refresh Frequency:

Power-on Stabilization Time:

Operating Conditions:

-30℃ To 70℃, 0 - 95%RH (non-condensing)

Storage Conditions:

-40°C To 85°C, 0 - 95%RH (non-condensing)

Highlight:

Storage Conditions Laser Particle Counting Sensor

PM 203 Laser Particle Counting Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

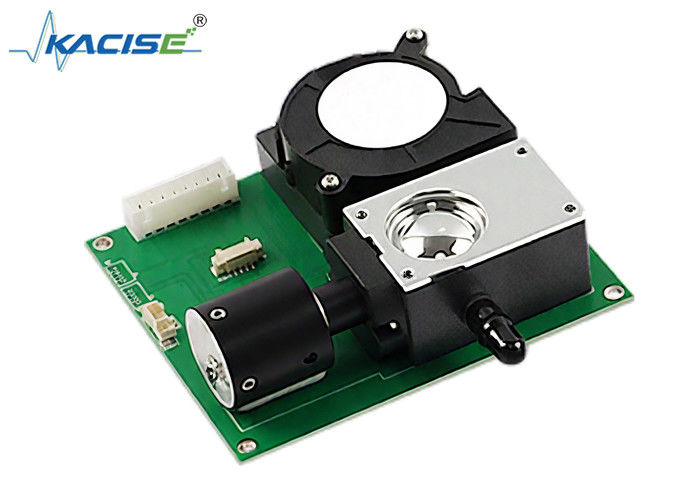

Laser Particle Counting Sensor KGD - PM - 203

Product Introduction

KGD PM 203 Laser Particle Counting Sensor For Storage Conditions 0 95%RH Non-condensing Performance 0

The KGD - PM - 203 laser particle counting sensor is based on the principle of optical scattering. It can accurately detect and calculate the number of suspended particles with different particle sizes in the air per unit volume. It can simultaneously output the particle numbers (pcs/L) of six channels: 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, and 10μm, and its counting efficiency meets the calibration standard specifications of the JJF 1190 - 2008 for dust particle counters.

Product Features

Outputs the numbers of particles with sizes of 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, and 10μm.
Constant current sampling, with high stability in long-term operation.
Constant-power linear laser for accurate identification.
Meets the calibration standard specifications of the JJF 1190 - 2008 for dust particle counters.

Technical Parameters

Detection Range	0.3 - 10μm
Counting Efficiency	50%@0.3μm 100%@≥0.5μm (Referenced to TSI9306, under the environmental conditions of 25℃±2℃, 50±10%RH)
Data Refresh Frequency	1s
Power-on Stabilization Time	8s
Operating Conditions	-30℃ to 70℃, 0 - 95%RH (non-condensing)
Storage Conditions	-40°C to 85°C, 0 - 95%RH (non-condensing)
Operating Voltage	DC 5.0V±0.1V; with a ripple < 50mV
Operating Current	<300mA
Standby Current	<25mA
Communication Interface	UART_TTL/IIC(3.3V/5V) RS485 (Customized)
Product Dimensions	W85H74D24.9(mm)
