Name: KGD PM 202 Laser Dust Particle Counting Sensor for Precise Counting Efficiency 0.3μm and Fast Power on Stabilization Time
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-PM-202
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KGD PM 202 Laser Dust Particle Counting Sensor for Precise Counting Efficiency 0.3μm and Fast Power on Stabilization Time

0.3μm Laser Dust Particle Counting Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-PM-202

Request A Quote

Product Details

Detection Range:

0 - 10,000,000 Pcs/L (1pcs/L = 28.3pcs/cf)

Output Channels:

0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm

Power - On Stabilization Time:

≤8s

Data Refresh Frequency:

Counting Efficiency:

50%@0.3μm 100%@≥0.5μm (Referenced To TSI9306, Under The Environmental Conditions Of 25℃±2℃, 50±10%RH)

Storage Conditions:

-40°C To 85°C, 0 - 95%RH (non - Condensing)

Highlight:

0.3μm Laser Dust Particle Counting Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

Laser Dust Particle Counting Sensor KGD - PM - 202

Product Introduction

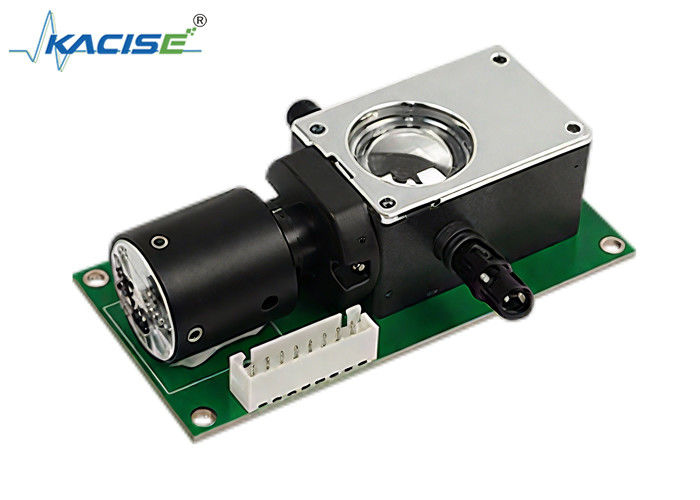

KGD PM 202 Laser Dust Particle Counting Sensor for Precise Counting Efficiency 0.3μm and Fast Power on Stabilization Time 0

The KGD - PM - 202 laser dust particle counting sensor is based on the principle of optical scattering. It can accurately detect and calculate the number of suspended particles with different particle sizes in the air per unit volume. It can simultaneously output the particle numbers of six channels: 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, and 10μm. Its performance meets the standards of the JJF1190 - 2008 Calibration Specification for Dust Particle Counters.

Product Features

Can output the numbers of particles in six channels from 0.3μm to 10μm.
Constant - power linear laser for accurate identification.
Can be paired with an air pump for sampling.
Meets the calibration standard specifications of the JJF1190 - 2008 for dust particle counters.

Technical Parameters

Detection Range	0 - 10,000,000 pcs/L (1pcs/L = 28.3pcs/cf)
Output Channels	0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm
Power - on Stabilization Time	≤8s
Data Refresh Frequency	1s
Counting Efficiency	50%@0.3μm 100%@≥0.5μm (Referenced to TSI9306, under the environmental conditions of 25℃±2℃, 50±10%RH)
Operating Conditions	-30°C to 70°C, 0 - 95%RH (non - condensing)
Storage Conditions	-40°C to 85°C, 0 - 95%RH (non - condensing)
Operating Voltage	DC 5.0V±0.1V; with a ripple < 50mV
Operating Current	<150mA
Standby Current	<25mA
Communication Methods	①UART_TTL(3.3V/5V) ②IIC(3.3V/5V) ③RS485
Product Dimensions	W82H40.2D26.3(mm)
