Name: Online Dust Particle Counter KGD - OPC - 205
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-OPC-205
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Online Dust Particle Counter KGD - OPC - 205

OPC Dust Particle Counter

Online Dust Particle Counter

KGD Dust Particle Counter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-OPC-205

Request A Quote

Product Details

Detected Particle Size Range:

0.3 - 10μm

Counting Efficiency:

50%@0.3μm 100%@≥0.5μm (Referenced To TSI9306, Under The Environmental Conditions Of 25±2℃, 50±10%RH)

Power-on Stabilization Time:

≤8s

Data Refresh Frequency:

Operating Conditions:

0℃ To 45℃: 0 - 95%RH (non-condensing)

Storage Conditions:

-20℃ To 60℃, 0 - 95%RH (non-condensing)

Highlight:

OPC Dust Particle Counter

Online Dust Particle Counter

KGD Dust Particle Counter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

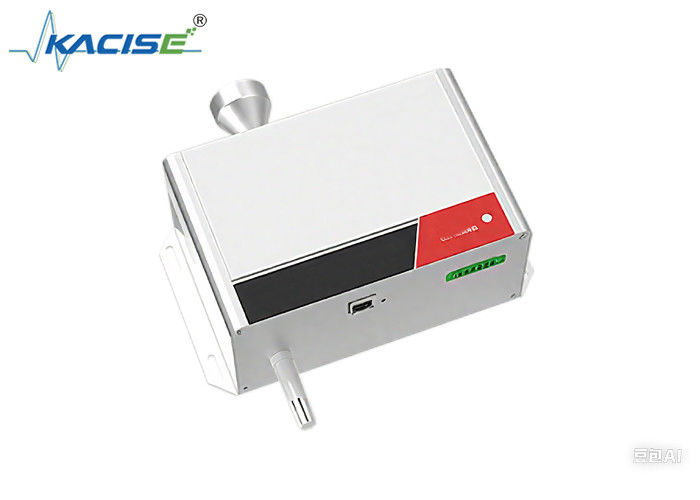

Online Dust Particle Counter KGD - OPC - 205

Product Introduction

Online Dust Particle Counter KGD - OPC - 205 0

The 0PC - 6303M online dust particle counter adopts the principle of optical scattering. It can accurately detect and calculate the number of suspended particulate matters with different particle sizes in the air per unit volume. It is equipped with a built-in dust source intelligent recognition module unique to Sifang Optoelectronic, and is matched with an air pump with stable flow. It can simultaneously output the particle numbers (pcs/L) of six channels: 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, and 10μm, and the indication error meets the JJF1190 standard.

Product Features

Intelligent particulate matter recognition algorithm to meet accurate measurement in different atmospheric environments.
Industrial-grade laser with high reliability.
Constant current sampling structure to ensure a constant sampling flow rate.
Can output the numbers of particles with sizes of 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, and 10μm (pcs/L).
Operates within a wide temperature range for greater stability.

Technical Parameters

Detected Particle Size Range	0.3 - 10μm
Counting Efficiency	50%@0.3μm 100%@≥0.5μm (Referenced to TSI9306, under the environmental conditions of 25±2℃, 50±10%RH)
Power-on Stabilization Time	≤8s
Data Refresh Frequency	1s
Operating Conditions	0℃ to 45℃: 0 - 95%RH (non-condensing)
Storage Conditions	-20℃ to 60℃, 0 - 95%RH (non-condensing)
Operating Voltage	DC 12V
Average Operating Current	≤1A
Communication Interface	RS485 interface (Standard configuration) RJ45 (Optional) 4-20mA (Optional)
Sampling Flow	2.83L/min (Configured for cleanliness requirements of Class 10,000) 28.3L/min (Configured for cleanliness requirements of Class 1,000)
