Online Dust Particle Counter (28.3L) KGD - OPC - 204

28.3L Dust Particle Counter

Online Dust Particle Counter

Place of Origin:

CHINA

Certification:

Request A Quote

Online Dust Particle Counter (28.3L) KGD - OPC - 204

Product Details

Number Of Channels:

Five Channels (0.3μm, 0.5μm, 1.0μm, 5.0μm, 10μm)

Counting Efficiency:

50%@0.3μm 100%@≥0.5μm (Under The Environmental Conditions Of 25±2℃, 50±10%RH)

Detection Range:

0 - 1,000,000 Pcs / 28.3L

Power-on Stabilization Time:

≤8s

Data Refresh Frequency:

Operating Conditions:

0℃ To 45℃; 0 - 95%RH (non-condensing)

Highlight:

28.3L Dust Particle Counter

Online Dust Particle Counter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

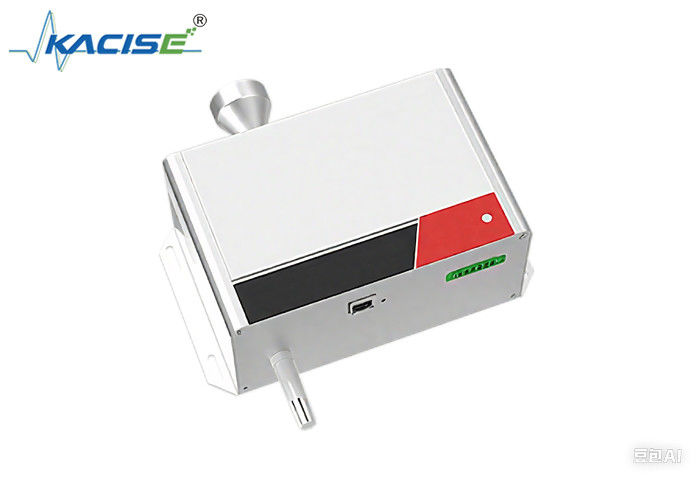

Online Dust Particle Counter (28.3L) KGD - OPC - 204

Product Introduction

Online Dust Particle Counter (28.3L) KGD - OPC - 204 0

The online dust particle counter KGD - OPC - 204 adopts the principle of optical scattering. It can accurately detect and calculate the number of suspended particulate matters with different particle sizes in the air per unit volume. It is equipped with a built-in dust source intelligent recognition module unique to Sifang Optoelectronic and has a high gas sampling rate of 28.3L/min. It can simultaneously output the particle numbers of five channels: 0.3μm, 0.5μm, 1.0μm, 5.0μm, and 10μm (the default unit is pcs/28.3L), and the indication error meets the JJF - 1190 standard.

Product Features

High-efficiency particle recognition rate.
Industrial-grade laser with high reliability.
Constant flow gas sampling system to ensure stable sampling.
Five channels output simultaneously (the numbers of particles with sizes of 0.3μm, 0.5μm, 1.0μm, 5.0μm, and 10μm).
Wide operating temperature range.

Technical Parameters

Number of Channels	Five channels (0.3μm, 0.5μm, 1.0μm, 5.0μm, 10μm)
Counting Efficiency	50%@0.3μm 100%@≥0.5μm (Under the environmental conditions of 25±2℃, 50±10%RH)
Detection Range	0 - 1,000,000 pcs / 28.3L
Power-on Stabilization Time	≤8s
Data Refresh Frequency	1s
Operating Conditions	0℃ to 45℃; 0 - 95%RH (non-condensing)
Storage Conditions	-20℃ to 60℃, 0 - 95%RH (non-condensing)
Operating Voltage	DC 24V
Average Operating Current	≤3A
Communication Interface	RS485 interface (Standard configuration) RJ45 (Optional)
Sampling Flow	28.3L/min
