Product Description

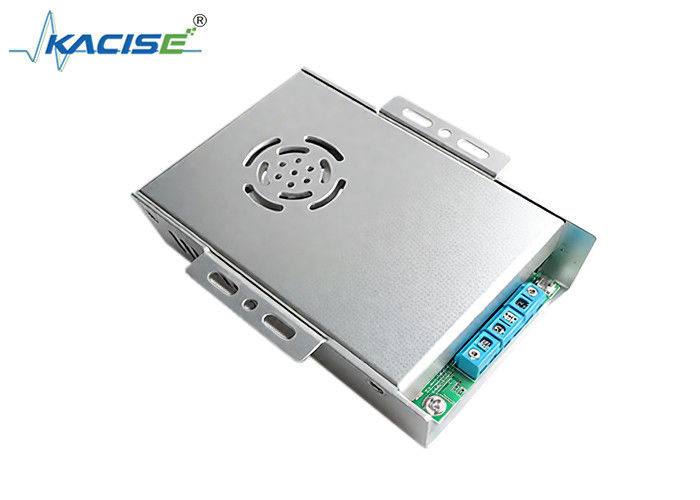

Integrated Air Quality Sensor Module KGD-AM-207

Product Introduction

The Integrated Thermal Runaway Sensor Module KGD-AM-207 is a cost-effective integrated air quality sensor module. It can measure and output the values of CO, smoke, and temperature in real-time. With stable performance, a compact design, and complete functions, it can be widely applied in the industries of energy storage cabinets, battery swapping cabinets, and battery safety monitoring.

Product Features

The minimum resolvable particle size is 0.3μm.
Constant current sampling design ensures high-precision performance under different working conditions.

Technical Parameters

Detection Range	Smoke: 0~5000μg/m³; CO: 0~1000ppm; Temperature: -10~60℃
Detection Precision	Smoke: ±20% of the reading or ±200μg/m³; CO: 30% of the reading or ±40ppm; Temperature: ±1℃
Alarm Threshold	Smoke: ≥2000μg/m³; CO: ≥300ppm; Temperature: ≥55℃
Data Refresh Frequency	1s
Working Conditions	-10~60℃, 0~95%RH (non-condensing)
Storage Conditions	-30~70℃, 0~95%RH (non-condensing)
Working Voltage	Wide voltage range of 9~36V
Average Working Current	<100mA
Communication Interface	Switch quantity output (CAN communication can be customized)
Product Dimensions	W100H60D24.5mm
