Name: Battery Thermal Runaway Air Pressure Sensor KGD-ATRS-209
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-ATRS-209
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Battery Thermal Runaway Air Pressure Sensor KGD-ATRS-209

Battery Thermal Runaway Air Pressure Sensor

KGD-ATRS-209 Air Pressure Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-ATRS-209

Request A Quote

Product Details

Measurement Components:

Ambient Pressure

Communication Method:

CAN

Communication Parameters:

Baud Rate 500k/250k

Measurement Range:

50kPa~150kPa

Response Time:

Air Pressure Response Time < 1s

Measurement Precision:

At 0℃~85℃: ≤1%; At -40℃~0°C And 85℃~125°C: ≤±1.5%

Highlight:

Battery Thermal Runaway Air Pressure Sensor

KGD-ATRS-209 Air Pressure Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

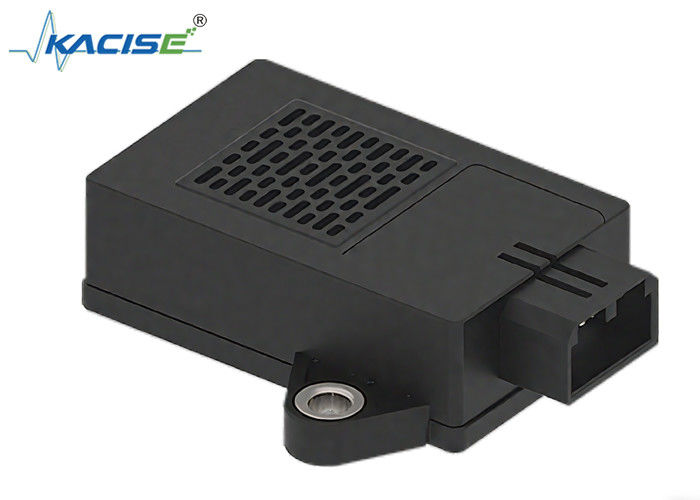

Battery Thermal Runaway Air Pressure Sensor KGD-ATRS-209

Battery Thermal Runaway Air Pressure Sensor KGD-ATRS-209 0

Product Introduction

The Battery Thermal Runaway Air Pressure Sensor KGD-ATRS-209 effectively monitors the pressure released during battery thermal runaway, providing early and rapid warnings for the thermal runaway of automotive power batteries and the fire safety of energy storage systems, thus enhancing safety. This sensor has remarkable features such as accurate measurement, fast response time, a large measurement range, low power consumption, and a long service life.

Product Features

Air pressure measurement, with a working range of 50KPa~160KPa. The error is ≤±1.15KPa at 0℃~85℃; and the error is ≤±1.725KPa at -40℃~0℃ and 0℃~85℃. The ultra-low power consumption mode can reach the μA level, and the service life can be up to 15 years.

The sensor adopts a mature automotive-grade circuit design, which can adapt to harsh in-vehicle environments.

It uses CAN communication, and the protection level can reach IP40.

Technical Parameters

Measurement Components	Ambient Pressure
Communication Method	CAN
Communication Parameters	Baud rate 500k/250k
Measurement Range	50kPa~150kPa
Response Time	Air pressure response time < 1s
Measurement Precision	At 0℃~85℃: ≤1%; at -40℃~0°C and 85℃~125°C: ≤±1.5%
Resolution	0.1kPa
Operating Temperature and Humidity	-40℃~105℃, 0~99%RH
