Thermal Conductivity Hydrogen Sensor KGD-ATRS-204

Thermal Conductivity Hydrogen Sensor KGD-ATRS-204

KGD-ATRS-204 Hydrogen Sensor

Thermal Conductivity Hydrogen Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KGD-ATRS-204

Contact Us
Request A Quote
Thermal Conductivity Hydrogen Sensor KGD-ATRS-204
Product Details
Detection Type:
H₂
Detection Range:
0~4%vol
Detection Accuracy:
±(0.1%vol + 10% Of The Reading)
Data Refresh:
≤1s
Response Time:
T80≤20s
Output Mode:
CAN
Highlight:

KGD-ATRS-204 Hydrogen Sensor

,

Thermal Conductivity Hydrogen Sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

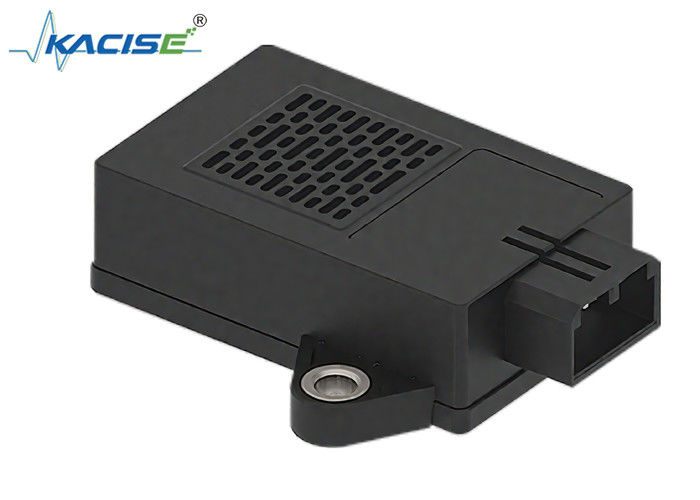

Thermal Conductivity Hydrogen Sensor KGD-ATRS-204

Thermal Conductivity Hydrogen Sensor KGD-ATRS-204 0

Product Introduction
The Thermal Conductivity Hydrogen Sensor KGD-ATRS-204 is a thermal conductivity (TC) hydrogen sensor. By using the method of gas thermal conductivity measurement, it realizes early and rapid warning for the thermal runaway of automotive power batteries, the energy storage of lithium batteries, and the application of hydrogen energy, thus improving safety. At the same time, it can effectively monitor hydrogen leakage and transmit the measurement signals to the main control system through CAN communication. This solution has remarkable features such as accurate measurement, fast response time, large measurement range, low power consumption and long service life.
Product Features
  • The measurement of H₂ adopts thermal conductivity technology (TC), and the accuracy can reach ±(0.1%vol + 10% of the reading) within the measurement range of 0~4%vol.
  • The response time is fast, T80≤2s, and the service life can reach 15 years.
  • The sensor adopts a mature automotive-grade circuit design and can adapt to harsh in-vehicle and energy storage environments.
  • CAN real-time communication, and the protection level can meet the requirements of IP54.
Technical Parameters
Detection Type H₂
Detection Range 0~4%vol
Detection Accuracy ±(0.1%vol + 10% of the reading)
Data Refresh ≤1s
Response Time T80≤20s
Output Mode CAN
Design Life 15 years
Operating Conditions -40℃~+85℃; 0~99%RH (non-condensing)
Storage Conditions -40℃~+95℃; 0~99%RH (non-condensing)
Operating Pressure 80kPa~120kPa
Protection Level IP54
Power Supply Voltage 9VDC~36VDC, rated voltage +12VDC/+24VDC (compatible)
Average Operating Current ≤60mA
