Name: Miniature Infrared Carbon Dioxide Sensor KGD-SRH-200
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-SRH-200
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Miniature Infrared Carbon Dioxide Sensor KGD-SRH-200

KGD-SRH-200 Infrared Carbon Dioxide Sensor

Miniature Infrared Carbon Dioxide Sensor

Miniature Carbon Dioxide Sensor

Place of Origin:

CHINA

Certification:

Model Number:

KGD-SRH-200

Request A Quote

Product Details

Detection Range:

0 To 20% By Volume (vol)

Detection Accuracy:

0 To 5% Vol: ≤ ±0.5% Vol; 5 To 20% Vol: ≤ ±10% Of The Reading

Resolution:

0.01%

Operating Temperature:

-10℃～50℃

Storage Temperature:

-40℃～70℃

Operating Humidity:

0 To 95% Relative Humidity (non-condensing)

Highlight:

KGD-SRH-200 Infrared Carbon Dioxide Sensor

Miniature Infrared Carbon Dioxide Sensor

Miniature Carbon Dioxide Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

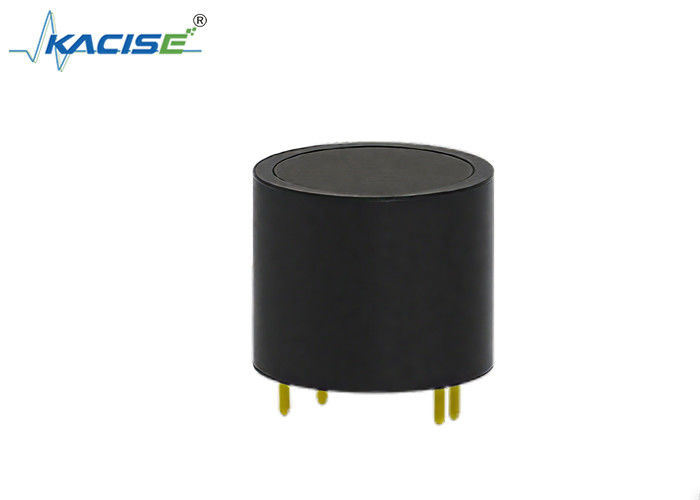

Miniature Infrared Carbon Dioxide Sensor KGD-SRH-200

Product Introduction

The KGD-SRH-200 series of miniature infrared carbon dioxide sensors is a miniature gas sensor used for real-time measurement of gas concentration changes. It employs the Non-Dispersive Infrared (NDIR) detection technology and has remarkable characteristics and advantages such as a good signal-to-noise ratio, strong selectivity, immunity to cross-gas interference, high precision, excellent long-term stability, and a long lifespan. The sensor features a digital serial port output function, meeting various usage requirements in industrial sites, laboratory measurements, etc., and is widely applied in fields like environmental monitoring and healthcare.

Miniature Infrared Carbon Dioxide Sensor KGD-SRH-200 0

Product Features

High resolution of 0.01%
Ensures detection accuracy across the entire temperature and concentration range
Digital signal output mode
Dustproof and waterproof with an IP64 rating
Fast response and good stability
No occurrence of the "poisoning" phenomenon of catalytic sensors

Technical Parameters

Detection Range	0 to 20% by volume (vol)
Detection Accuracy	0 to 5% vol: ≤ ±0.5% vol; 5 to 20% vol: ≤ ±10% of the reading
Resolution	0.01%
Operating Temperature	-10℃～50℃
Storage Temperature	-40℃～70℃
Operating Humidity	0 to 95% Relative Humidity (non-condensing)
Warm-up Time	10s
Response Time	<25s
Operating Voltage	3.3～5.5VDC
Average Operating Current	<40mA
Serial Port Baud Rate	9600bps
Product Dimensions	Φ20 x 16.6 millimeters (excluding pins)
Weight	5 grams
Service Life	More than 10 years
