Name: Low Concentration Dust Detector KGD-OPC-211
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-OPC-211
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Low Concentration Dust Detector KGD-OPC-211

Low Concentration Dust Detector

KGD-OPC-211 Dust Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-OPC-211

Request A Quote

Product Details

Power-on Stabilization Time:

≤8 Seconds

Data Refresh Frequency:

1 Second

Operating Conditions:

0℃～45℃; 0~95%RH (non-condensing)

Storage Conditions:

-20~60℃, 0~95%RH (non-condensing)

Operating Voltage:

DC24V±15%

Average Operating Current:

≤3A

Highlight:

Low Concentration Dust Detector

KGD-OPC-211 Dust Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

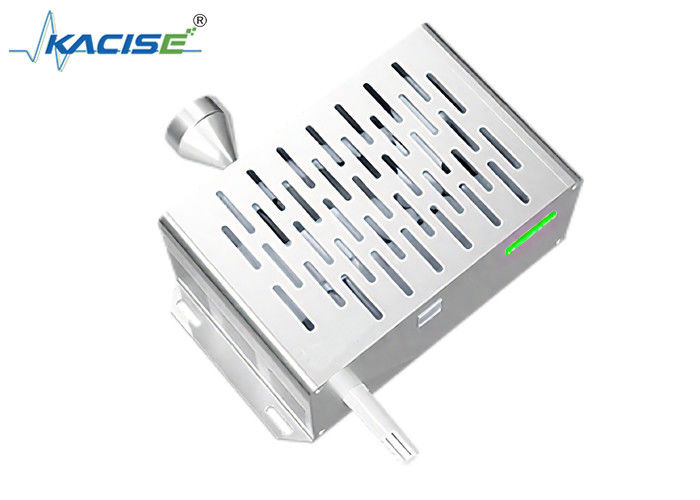

Low Concentration Dust Detector KGD-OPC-211

Product Introduction

The Low Concentration Dust Detector KGD-OPC-211 adopts the principle of optical scattering. It can accurately detect and calculate the number of suspended particulate matters of different particle sizes in the air per unit volume. It is equipped with KACISE's unique intelligent dust source identification module. With a large gas sampling rate of 6L/min, it can simultaneously output the particle numbers of twelve channels, namely 0.3μm, 0.4μm, 0.5μm, 0.6μm, 0.8μm, 1.0μm, 1.5μm, 2.0μm, 2.5μm, 5.0μm, 8.0μm, and 10μm, as well as the mass concentrations of PM2.5 and PM10. The indication error meets the standard of JJF-1190.

Low Concentration Dust Detector KGD-OPC-211 0

Product Features

High-efficiency particle recognition rate
Industrial-grade laser, with high reliability
Constant flow gas sampling system to ensure stable sampling
Simultaneous output of multiple channels (particle numbers of 0.3μm, 0.4μm, 0.5μm, 0.6μm, 0.8μm, 1.0μm, 1.5μm, 2.0μm, 2.5μm, 5.0μm, 8.0μm, and 10μm)
Wide operating temperature range

Technical Parameters

Number of Channels	Multiple channels (0.3μm, 0.4μm, 0.5μm, 0.6μm, 0.8μm, 1.0μm, 1.5μm, 2.0μm, 2.5μm, 5.0μm, 8.0μm, and 10.0μm)
Counting Efficiency	50%@0.3μm 100%@≥0.5μm (under the environmental conditions of 25±2℃ and 50±10%RH)
Detection Range	0~200ug/m³ (can be displayed up to 3000 ug/m³)
Accuracy Error	PM2.5: 0~100ug/m³: ±10μg/m³; 100~200 ug/m³: ±10%; PM10: 0~100ug/m³: ±20μg/m³; 100~200 ug/m³: ±20%
Power-on Stabilization Time	≤8 seconds
Data Refresh Frequency	1 second
Operating Conditions	0℃～45℃; 0~95%RH (non-condensing)
Storage Conditions	-20~60℃, 0~95%RH (non-condensing)
Operating Voltage	DC24V±15%
Average Operating Current	≤3A
Communication Interface	RS485 interface (standard configuration); RJ45 (optional configuration)
Product Service Life	≥3 years
Sampling Flow Rate	6L/min
External Sampling Tube	Inner diameter: ф10mm; Length: ≤3m
Operating Mode	Work for 2 minutes / Sleep for 28 minutes
Calibration	JJF 1190-2008
