Name: Powerful Dust Concentration Detector KGD-OPM-211 for Precise Measurements
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-OPM-211
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Powerful Dust Concentration Detector KGD-OPM-211 for Precise Measurements

Powerful Dust Concentration Detector

Precise Measurements Dust Concentration Detector

KGD-OPM-211 Dust Concentration Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-OPM-211

Request A Quote

Product Details

Power-on Stabilization Time:

≤8 Seconds

Data Refresh Frequency:

1 Second

Operating Conditions:

-30℃ To 70℃; 5% To 95% Relative Humidity (RH)

Storage Conditions:

-40℃ To 85℃; 0% To 95% Relative Humidity (RH) (non-condensing)

Operating Voltage:

DC 12V

Average Operating Current:

Less Than 4.5A

Highlight:

Powerful Dust Concentration Detector

Precise Measurements Dust Concentration Detector

KGD-OPM-211 Dust Concentration Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

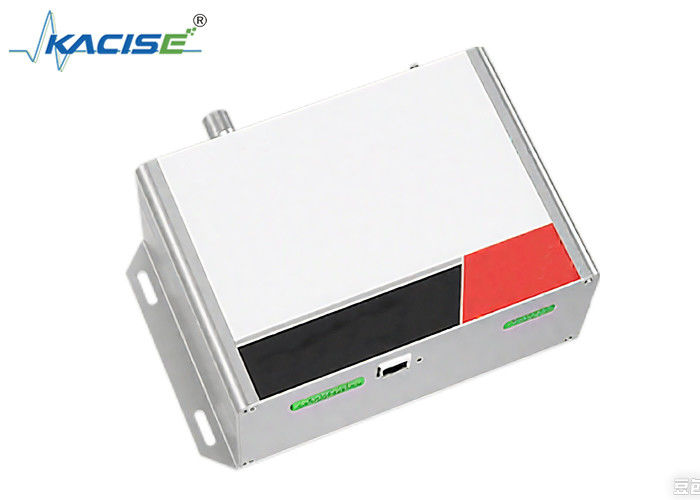

Dust Concentration Detector KGD-OPM-211

Product Introduction

The Dust Concentration Detector KGD-OPM-211 applies the principle of optical scattering. It can accurately detect and calculate the number of suspended particulate matters with different particle sizes in the air per unit volume. It is equipped with KACISE's brand-new patented technology of intelligent dust source identification, and combined with an air pump with a stable flow rate, it realizes the real-time detection and output of the mass concentrations of particulate matters PM2.5, PM10, and TSP.

Powerful Dust Concentration Detector KGD-OPM-211 for Precise Measurements 0

Product Features

Industrial-grade laser, featuring high reliability
Constant current sampling control to ensure a constant sampling flow rate
Real-time measurement of the mass concentrations of PM2.5, PM10, and TSP, and the detection data is updated once every second
Operates within a wide temperature range for enhanced stability

Technical Parameters

Detection Range	0-50mg/m³ (The maximum display value can be 1000mg/m³)
Measurement Accuracy of PM2.5, PM10, and TSP	0-1 mg/m³: ±200μg/m³; 1-50 mg/m³: ±20% of the reading
Power-on Stabilization Time	≤8 seconds
Data Refresh Frequency	1 second
Operating Conditions	-30℃ to 70℃; 5% to 95% Relative Humidity (RH)
Storage Conditions	-40℃ to 85℃; 0% to 95% Relative Humidity (RH) (non-condensing)
Operating Voltage	DC 12V
Average Operating Current	Less than 4.5A
Communication Interface	RS485 interface (standard configuration), RJ45 interface (standard configuration), 4-20mA analog signal interface (standard configuration)
Product Service Life	≥3 years
Recommended Sampling Flow Rate	1L/min
