Name: Highly Accurate Laser Dust Sensor KGD-PM-211 for Dust Concentration Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-PM-211
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Highly Accurate Laser Dust Sensor KGD-PM-211 for Dust Concentration Measurement

Highly Accurate Laser Dust Sensor

KGD-PM-211 Laser Dust Sensor

Dust Concentration Measurement Laser Dust Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-PM-211

Request A Quote

Product Details

Detection Range:

0~50mg/m³, And The Maximum Display Value Can Be 1000mg/m³

Measurement Accuracy Of PM2.5/PM10/TSP:

0~1 Mg/m³: ±200μg/m³; 1~50 Mg/m³: ±20% Of The Reading (Tested Under Typical Working Conditions, That Is, 25± 2℃, 50±10%RH, With Gold Sample As The Reference)

Recommended Sampling Flow Rate:

2L/min

Data Refresh Frequency:

1 Second

Operating Conditions:

-30℃ To 70℃; 5% To 95% Relative Humidity (RH)

Storage Conditions:

-40℃ To 85℃; 0% To 95% Relative Humidity (RH) (non-condensing)

Highlight:

Highly Accurate Laser Dust Sensor

KGD-PM-211 Laser Dust Sensor

Dust Concentration Measurement Laser Dust Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

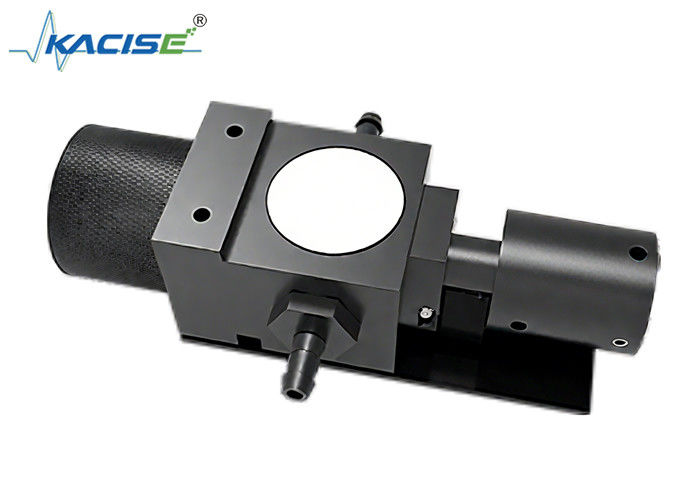

Laser Dust Sensor KGD-PM-211

Product Introduction

The KGD-PM-211 module of the laser dust sensor adopts the principle of optical scattering. It can accurately detect and calculate the number of suspended particulate matters of different particle sizes in the air per unit volume. Equipped with KACISE's unique intelligent dust source identification and an air pump with a stable flow rate, it can achieve the real-time output of the mass concentrations of particulate matters PM2.5, PM10, and TSP.

Highly Accurate Laser Dust Sensor KGD-PM-211 for Dust Concentration Measurement 0

Product Features

Simultaneous output of PM2.5, PM10, and TSP
Industrial-grade laser, with high reliability
Anti-ash accumulation design, meeting the measurement requirements in high-dust environments
Small size and easy to install

Technical Parameters

Detection Range	0~50mg/m³, and the maximum display value can be 1000mg/m³
Measurement Accuracy of PM2.5/PM10/TSP	0~1 mg/m³: ±200μg/m³; 1~50 mg/m³: ±20% of the reading (Tested under typical working conditions, that is, 25± 2℃, 50±10%RH, with Gold Sample as the reference)
Recommended Sampling Flow Rate	2L/min
Data Refresh Frequency	1 second
Operating Conditions	-30℃ to 70℃; 5% to 95% Relative Humidity (RH)
Storage Conditions	-40℃ to 85℃; 0% to 95% Relative Humidity (RH) (non-condensing)
Operating Voltage	DC 5V±0.2V, with a ripple of less than 100mV
Average Operating Current	Less than 150mA
Standby Current	Less than 25mA
Communication Interface	UART (TTL 3.3V)
Product Dimensions	W90.8H60.2D37.6 mm
