Name: Sulfur Hexafluoride Sensor KSF5-015 with 1 ppm Resolution and ≤±1%F.S. Repeatability
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSF5-015
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Sulfur Hexafluoride Sensor KSF5-015 with 1 ppm Resolution and ≤±1%F.S. Repeatability

1 ppm Resolution Sulfur Hexafluoride Sensor

KSF5-015 Sulfur Hexafluoride Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KSF5-015

Request A Quote

Product Details

Detection Range:

0 ~ 1500ppm

Alarm Point:

1000ppm (adjustable)

Resolution:

1 Ppm

Detection Accuracy:

±2% F.S. (25°C)

Repeatability:

≤±1%F.S.

Response Time:

T90＜30s (diffusion Type)

Highlight:

1 ppm Resolution Sulfur Hexafluoride Sensor

KSF5-015 Sulfur Hexafluoride Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.742.855.2mm

Get Best Price

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price

86--17719566736

Contact Now

Product Description

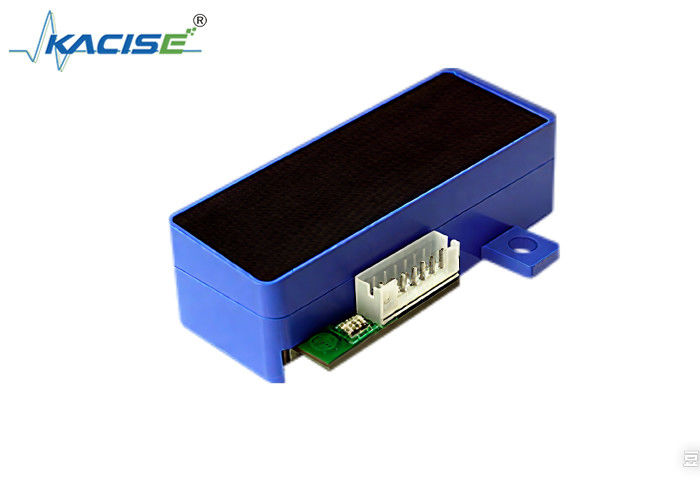

Sulfur Hexafluoride Sensor KSF5-015

Product Introduction

The Sulfur Hexafluoride Sensor KSF5-015 is a sulfur hexafluoride (SF6) gas leakage monitoring sensor developed based on the Non-Dispersive Infrared (NDIR) technology, which can conduct real-time online monitoring of the concentration of SF6 gas in the environment. This sensor has the characteristics of high accuracy and good long-term stability, and is widely used in fields such as gas analysis, industrial process control, environmental detection, and the leakage detection of SF6 gas concentration in power plants and substations.

Sulfur Hexafluoride Sensor KSF5-015 with 1 ppm Resolution and ≤±1%F.S. Repeatability 0

Product Features

High accuracy, ensuring detection accuracy within the full temperature and concentration range
High selectivity, without cross-gas interference and poisoning
Automatic calibration, with less drift and good long-term stability
Fast response
Long service life
High IP54 dustproof and waterproof rating

Technical Parameters

Detection Range	0 ~ 1500ppm
Alarm Point	1000ppm (adjustable)
Resolution	1 ppm
Detection Accuracy	±2% F.S. (25°C)
Repeatability	≤±1%F.S.
Response Time	T90＜30s (diffusion type)
Warm-up Time	＜15s
Operating Conditions	-20 ~ 60℃; 0~95%RH (non-condensing)
Service Life	≥10 years
Overall Dimensions	L63.2W38.5H19.23 (mm)
Compliance Standards	DLT1555-2016
