Name: Lampblack Sensor KGD-PM-222
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-PM-222
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Lampblack Sensor KGD-PM-222

KGD-PM-222 Lampblack Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-PM-222

Request A Quote

Product Details

Measurement Accuracy:

≤ 100µg/m³: ±15µg/m³; >100µg/m³: ±15% Of The Reading (Under The Environmental Conditions Of 25℃±2℃ And 50±10%RH, Benchmarked Against Grimm)

Compatible Air Pump:

3~9L/min

Operating Temperature:

-20°C~60℃

Storage Temperature:

-30°C~70℃

Rated Voltage:

DC 5V±0.1V

Operating Current:

≤1A

Highlight:

KGD-PM-222 Lampblack Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

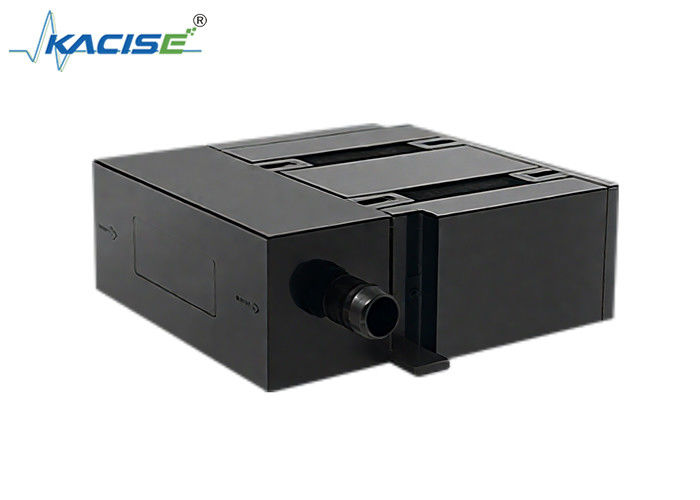

Lampblack Sensor KGD-PM-222

Product Introduction

The KGD-PM-222 is a lampblack sensor specifically designed for monitoring catering lampblack. It adopts a side-stream sampling method and is equipped with a built-in water mist removal device. Combined with an intelligent particulate matter identification algorithm, it ensures that the sensor can quickly and accurately detect changes in the lampblack concentration. Meanwhile, the application of the innovative lens self-cleaning technology can effectively protect the sensor from lampblack pollution for a long time and greatly extend the service life of the sensor.

Product Features

Lampblack Sensor KGD-PM-222 0

Product Features

Real-time monitoring of the concentration of lampblack particulate matters
Intelligent dust source identification technology
Lens self-cleaning technology for long-term protection
Side-stream design, not affected by the sampling flow rate
Built-in water mist removal device, not affected by water vapor

Technical Parameters

Measurement Accuracy	≤ 100µg/m³: ±15µg/m³; >100µg/m³: ±15% of the reading (Under the environmental conditions of 25℃±2℃ and 50±10%RH, benchmarked against Grimm)
Compatible Air Pump	3~9L/min
Operating Temperature	-20°C~60℃
Storage Temperature	-30°C~70℃
Rated Voltage	DC 5V±0.1V
Operating Current	≤1A
Communication Method	①UART; ②IIC
Product Dimensions	L88W80H28.3(mm)
