Laser Ammonia Monitor KGD-AM-211

Laser Ammonia Monitor KGD-AM-211

Laser Ammonia Monitor

KGD-AM-211 Ammonia Monitor

KGD-AM-211 Laser Ammonia Monitor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KGD-AM-211

Contact Us
Request A Quote
Laser Ammonia Monitor KGD-AM-211
Product Details
Detected Gas Type:
Ammonia
Detection Range:
0-50ppm
Detection Error:
±2.5ppm
Response Time:
T90≤20s
Measurement Cycle:
1s-3600s
Product Dimensions:
143.1mm (W) * 321.9mm (L) * 129.3mm (H)
Highlight:

Laser Ammonia Monitor

,

KGD-AM-211 Ammonia Monitor

,

KGD-AM-211 Laser Ammonia Monitor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

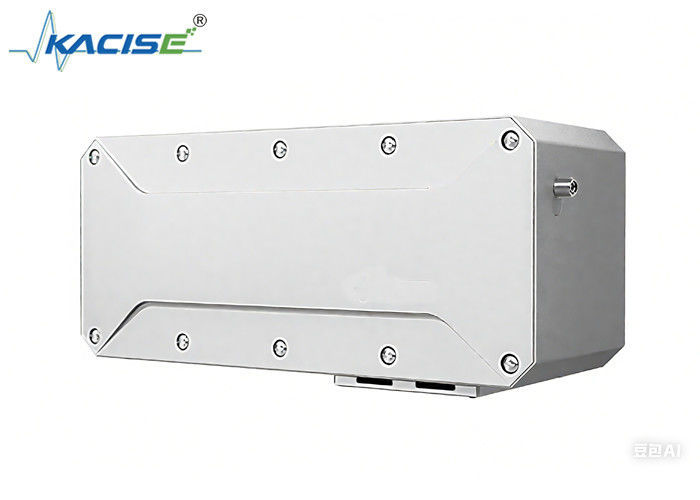

Laser Ammonia Monitor KGD-AM-211

Product Introduction

The Laser Ammonia Monitor KGD-AM-211 is an industrial device used to monitor the concentration of ammonia gas in pigsties. It features low power consumption, high-precision detection, and high resolution.

Laser Ammonia Monitor KGD-AM-211 0

Product Features

  • TDLAS laser ammonia sensor with independent intellectual property rights
  • The sensor has a fast response speed, high measurement accuracy, and a long service life
  • Adopts narrowband laser spectral absorption technology, which has unique selectivity for ammonia and is not interfered by other gases, water vapor, or dust
  • Measurement range: 0～50ppm
  • Service life up to 10 years
  • Powered by 12V
  • Low power consumption

Technical Parameters

Detected Gas Type Ammonia
Detection Range 0-50ppm
Detection Error ±2.5ppm
Response Time T90≤20s
Measurement Cycle 1s-3600s
Product Dimensions 143.1mm (W) * 321.9mm (L) * 129.3mm (H)
Product Weight 6±0.3kg
Communication Method RS485@12V system
Designed Service Life 10 years
IP Protection Rating IP66
Explosion-proof Rating UL Class1 Div2
Operating Conditions Temperature: 5℃~40℃; Humidity: 0~100%RH (non-condensing)
Operating Air Pressure 101kPa
Power Supply Method 12V
Average Power ≤1W
