Top- Laser Ammonia Detector KGD-AM-212 Detection Range 0-50-100-1000ppm Detection Error ±2.5ppm

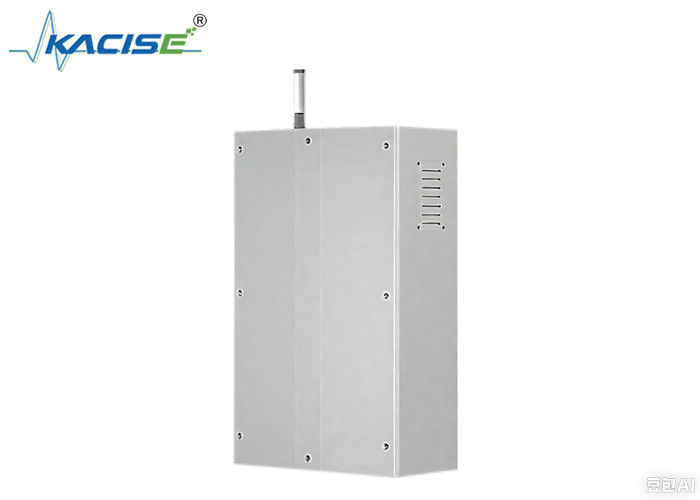

Laser Ammonia Detector KGD-AM-212

Product Introduction

The Laser Ammonia Detector KGD-AM-212 is independently developed by KACISE. It is a high-performance optical gas analyzer based on the Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology. The narrowband laser spectral absorption technology has unique selectivity for ammonia and is not interfered by other gases, water vapor, dust, etc., and can work stably in harsh working conditions and complex gas environments. The system is equipped with a high-performance probe and a gas chamber processed by a special technique. While improving the detection accuracy and sensitivity, it also ensures the stability of performance and a longer service life. It contains a LORaWAN module, which can be connected to the Internet of Things for remote communication with the gateway and supports remote data transmission. Operations such as calibration and calibration of the product can be carried out through the TTL communication interface. With low power consumption and a modular design, it is convenient for maintenance and integration.

Product Features

• Low measurement range (0-50-100-1000ppm)
• Minimum detection limit of 1ppm
• Resolution of 1ppm
• Fast response time, with T90≤20S
• Adopting TDLAS technology and temperature compensation algorithm, it is not affected by environmental interference
• Fast response speed, high measurement accuracy, and long service life
• Modular design, simple installation, convenient for integration, and supports remote data transmission
• Low power consumption, with two power supply modes, and the whole machine can achieve self-powered operation outdoors

Technical Parameters
