Ultrasonic Oxygen Sensor KGD-GAS-426 with Maintenance-Free Design and 10-Year Service Life

High Resolution Ultrasonic Oxygen Sensor

Ultrasonic Oxygen Sensor KGD-GAS-426

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-GAS-426

Request A Quote

Product Details

Detection Principle:

Ultrasonic Measurement Principle

Detection Range:

O₂ Concentration: 20.5% - 100%

Detection Accuracy:

O₂ Concentration: ±3%FS @(5 - 45)°C

Resolution:

O₂ Concentration: 0.1%

Response Time:

O₂ Concentration: ≤5.0s (T90, 0.5L/min) ≤15s (T90, 0.2L/min)

Operating Conditions:

0 °C - 50 °C, 0 - 95%RH (non - Condensing)

Highlight:

High Resolution Ultrasonic Oxygen Sensor

Ultrasonic Oxygen Sensor KGD-GAS-426

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Online Coal Gas Analyzer with Multi-component Measurement High Accuracy and Automated Calorific Value Calculation

Get Best Price

In-situ Zirconia Gas Analyzer with Simultaneous O₂ and COe Measurement, High Temperature Resistance up to 1500°C, and RS-485/MODBUS Communication

Get Best Price

KGD-WQ-513 Vehicle Emission Gas Analyzer with High-Precision Micro-Flow Infrared Sensor for Direct NO and NO₂ Measurement and Multi-Stage Filtration

Get Best Price

KGD-WQ-524 Zero Gas Generator with 16L/min Flow Rate 6-Channel Output and 6-Year Service Life for Vehicle Exhaust Detection

Get Best Price

Contact Now

Product Description

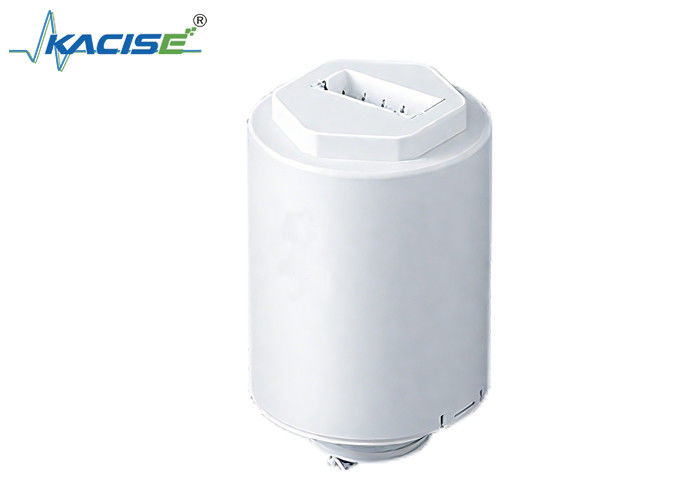

Ultrasonic Oxygen Sensor KGD - GAS - 426

Product Overview

The KGD - GAS - 426 ultrasonic oxygen sensor is an economical and practical sensor designed for measuring oxygen concentration in binary gases. This advanced product utilizes ultrasonic sensing technology and features a structure and interface that seamlessly replace traditional oxygen battery sensors. It offers exceptional service life, excellent stability, and full compliance with environmental protection regulations.

Key Features

Ultrasonic technology - maintenance-free and drift-free operation
Full-range temperature and humidity compensation
Service life exceeding 10 years
Environmentally compliant - seamless replacement for oxygen batteries

Technical Specifications

Parameter	Specification
Detection Principle	Ultrasonic measurement principle
Detection Range	O₂ concentration: 20.5% - 100%
Detection Accuracy	O₂ concentration: ±3%FS @(5 - 45)°C
Resolution	O₂ concentration: 0.1%
Response Time	O₂ concentration: ≤5.0s (T90, 0.5L/min) ≤15s (T90, 0.2L/min)
Operating Conditions	0°C - 50°C, 0 - 95%RH (non-condensing)
Storage Conditions	-20°C - 50°C, 0 - 95%RH (non-condensing)
Operating Voltage	DC 5V
Operating Current	Average operating current ≤40mA
Analog Output	200mV - 2300mV (corresponding to 1 - 100% oxygen concentration)
Product Dimensions	W30*L46 (mm)
