Name: KACISE Gas Leak Alarm KGD - GAS - 312 For High - Temperature Industrial Environments
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-GAS-312
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KACISE Gas Leak Alarm KGD - GAS - 312 For High - Temperature Industrial Environments

Industrial Environments Gas Leak Alarm

High Temperature Gas Leak Alarm

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-GAS-312

Request A Quote

Product Details

Detection Principle:

Non - Dispersive Infrared (NDIR) Principle

Detected Gas Object:

NMP (n - Methyl - 2 - Pyrrolidone)

Concentration Display:

7 - Segment LED (4 - Digit)

Detection Range:

0 - 100%LEL

Display Resolution:

0.5%LEL

Sampling Method:

Furnace Differential Pressure Air Intake

Highlight:

Industrial Environments Gas Leak Alarm

High Temperature Gas Leak Alarm

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

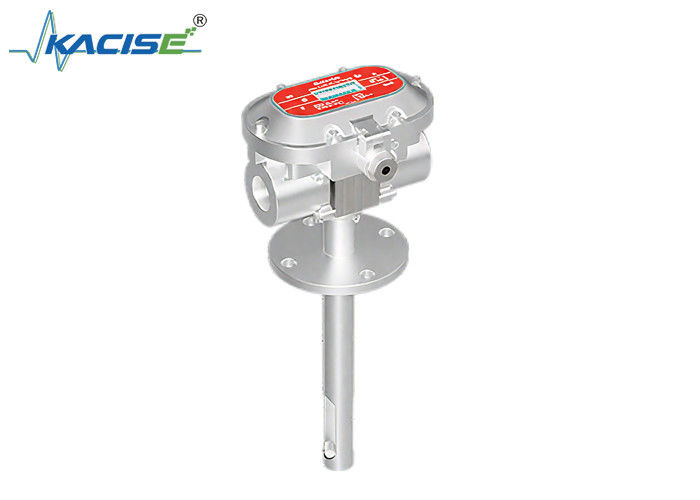

KACISE Gas Leak Alarm KGD - GAS - 312 For High-Temperature Industrial Environments

Key Attributes

Detection Principle: Non-Dispersive Infrared (NDIR) principle

Detected Gas Object: NMP (n-methyl-2-pyrrolidone)

Concentration Display: 7-segment LED (4-digit)

Detection Range: 0-100%LEL

Display Resolution: 0.5%LEL

Sampling Method: Furnace differential pressure air intake

Product Overview

The KACISE Gas Leak Alarm KGD-GAS-312 is a high-performance gas detection system designed specifically for high-temperature industrial environments. Utilizing Non-Dispersive Infrared (NDIR) technology, this alarm provides reliable monitoring of gas concentrations in drying equipment and exhaust pipes.

Key Features

Extended service life with maintenance-free operation and automatic calibration
Operates in measured gas temperatures from 0-160℃
Anti-interference design with excellent long-term stability
Integrated design for direct insertion into furnace applications
Pressure-resistant explosion-proof structure meeting Ex db IIC T3 Gb standards

Technical Specifications

Parameter	Specification
Alarm Set Value	15%LEL-50%LEL (Default 25%LEL, adjustable)
External Output	Gas concentration signal / alarm contact
Communication Method	DC4-20mA (resistive load below 300Ω), RS485 (Default baud rate 9600)
Alarm Accuracy	±5%LEL@15%LEL-50%LEL
Alarm Delay	T90 < 30s@15%LEL-50%LEL
Alarm Contact Capacity	250VAC0.2A / 30VDC1.5A (impedance load)
Operating Voltage	24VDC ±10%
Average Operating Current	<1.0A (@25°C, 24VDC)
Preheating Time	≤30min
Working Temperature	Detected gas: 0-160°C / Head operating: 0-60°C
Service Life	>5 years
Dimensions/Weight	418mm×178mm×110mm / approximately 6kg

Safety Certifications

Flame-proof construction meeting explosion-proof grade ExdibIICT3Gb standards for safe operation in hazardous environments.
