In-situ Laser Process Gas Analyzer Single-ended Type KGD-MQ-508 Measurement Principle TDLAS Measurement Range 0-2%VOL

In-situ Laser Process Gas Analyzer Single-ended Type KGD-MQ-508 Measurement Principle TDLAS Measurement Range 0-2%VOL

0-2%VOL Laser Process Gas Analyzer

TDLAS Laser Process Gas Analyzer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KGD-MQ-508

Contact Us
Request A Quote
Product Details
Measured Components:
O₂, CO₂, CO, CH₄ (Can Be Customized)
Measurement Principle:
TDLAS
Measurement Range:
0 - 2%VOL (Can Be Customized)
Accuracy:
≤ ±1%F.S.
Highlight:

0-2%VOL Laser Process Gas Analyzer

,

TDLAS Laser Process Gas Analyzer

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description
In-situ Laser Process Gas Analyzer Single-ended Type KGD-MQ-508
Measurement Principle: TDLAS
Measurement Range: 0-2%VOL
Measured Components
O₂, CO₂, CO, CH₄ (Can be customized)
Measurement Principle
TDLAS
Measurement Range
0 - 2%VOL (Can be customized)
Accuracy
≤ ±1%F.S.
Product Introduction

The KGD-MQ-508 In-situ Laser Process Gas Analyzer is a high-performance optical analysis instrument based on Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology. It does not require a sampling pretreatment system and can measure in-situ gas concentration in harsh environments such as high temperature, high dust, and high corrosion.

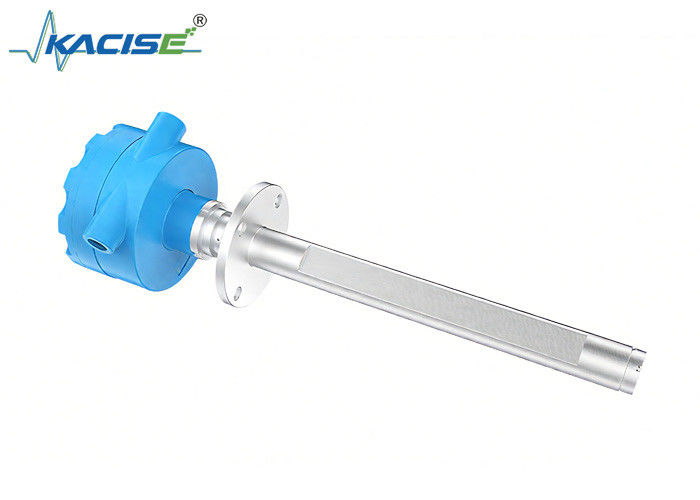

In-situ Laser Process Gas Analyzer Single-ended Type KGD-MQ-508 Measurement Principle TDLAS Measurement Range 0-2%VOL 0
Product Features
  • Using TDLAS technology, the measured gas is not affected by cross-interference from background gases
  • Single-ended opening, no need for optical alignment; the plug-in design greatly simplifies installation and debugging
  • No sampling pretreatment system required, enabling real-time and rapid measurement
  • Built-in standard gas reference module for dynamic compensation, locking the absorption spectral line in real-time without being affected by temperature, pressure, and environmental changes
  • Suitable for harsh industrial environments, resistant to chemical corrosion, high dust, and high moisture
Technical Parameters
Performance Parameters
Measured Components O₂, CO₂, CO, CH₄ (Can be customized)
Measurement Principle TDLAS
Measurement Range 0 - 2%VOL (Can be customized)
Accuracy ≤ ±1%F.S.
Repeatability ≤ ±1%
Resolution 0.01%VOL
Response Time T90 ≤ 4s
Operating Parameters
Ambient Temperature -20 - 60℃
Operating Power Supply 24V DC
Purge Gas 0.3 - 0.8MPa Industrial Nitrogen
Interface Signal
Communication RS-485
Output Mode 4 - 20mA
