Name: Battery Thermal Runaway Air Pressure Sensor KGD ATRS 318 for Fire Safety Response Time 1s Measuring Range 50kPa 150kPa
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-ATRS-318
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Battery Thermal Runaway Air Pressure Sensor KGD ATRS 318 for Fire Safety Response Time 1s Measuring Range 50kPa 150kPa

150kPa Air Pressure Sensor

50kPa Air Pressure Sensor

Battery Thermal Runaway Air Pressure Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-ATRS-318

Request A Quote

Product Details

Measurement Principle:

Piezoelectric Capacitor/resistive Type

Measured Component:

Ambient Pressure

Communication Method:

CAN

Communication Parameters:

Baud Rate 500k/250k

Measuring Range:

50kPa - 150kPa

Response Time:

Air Pressure Response Time: <1s

Highlight:

150kPa Air Pressure Sensor

50kPa Air Pressure Sensor

Battery Thermal Runaway Air Pressure Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

Battery Thermal Runaway Air Pressure Sensor KGD ATRS 318 for Fire Safety Response Time 1s Measuring Range 50kPa 150kPa

Product Overview

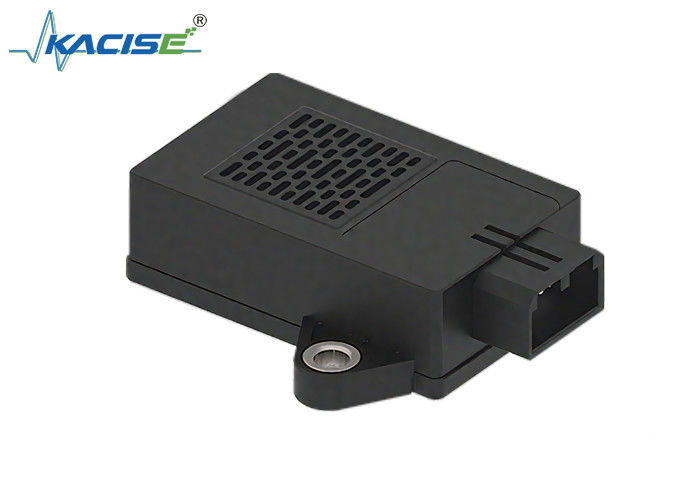

The Battery Thermal Runaway Pressure Sensor KGD-ATRS-318 provides critical monitoring of pressure changes during battery thermal runaway events. Designed for automotive power batteries and energy storage fire safety applications, this sensor delivers rapid warnings to enhance system safety with its precise measurements, fast response time, and reliable performance.

Key Features

Accurate air pressure measurement with working range of 50KPa - 160KPa
High precision: ≤ ±1.15KPa at 0°C - 85°C; ≤ ±1.725KPa at -40°C - 0°C & 0°C - 85°C
Ultra-low power consumption (μA level) with 15-year service life
Vehicle-grade circuit design for harsh automotive environments
CAN communication protocol with IP40 protection rating

Technical Specifications

Parameter	Specification
Measurement Principle	Piezoelectric capacitor/resistive type
Measured Component	Ambient pressure
Communication Method	CAN
Communication Parameters	Baud rate 500k/250k
Measuring Range	50kPa - 150kPa
Response Time	Air pressure response time: <1s
Measurement Accuracy	-40°C - 85°C: ≤±1.5%
Resolution	0.1kPa
Working Temperature and Humidity	-40°C - 105°C, 0 - 99%RH

Performance Highlights

Fast Response:

Detects pressure changes in less than 1 second for immediate safety alerts

Wide Operating Range:

Reliable performance from -40°C to 105°C in various humidity conditions

Durable Design:

Vehicle-grade components ensure long-term reliability in demanding environments
