Name: KGD ATRS 316 Battery Thermal Runaway Monitoring Sensor with Measurement Principle NDIR Dual channel MOX Light Scattering
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-ATRS-316
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KGD ATRS 316 Battery Thermal Runaway Monitoring Sensor with Measurement Principle NDIR Dual channel MOX Light Scattering

NDIR Battery Thermal Runaway Monitoring Sensor

MOX Battery Thermal Runaway Monitoring Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-ATRS-316

Request A Quote

Product Details

Measurement Principle:

NDIR Dual - Channel + MOX + Light Scattering

Measured Components:

PM2.5 + CO2 + CO

Communication Method:

CAN

Communication Parameter:

500k

Response Time:

T90 ≤ 15s

Resolution:

CO2/CO: 1ppm；PM: 1μg/m³

Highlight:

NDIR Battery Thermal Runaway Monitoring Sensor

MOX Battery Thermal Runaway Monitoring Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

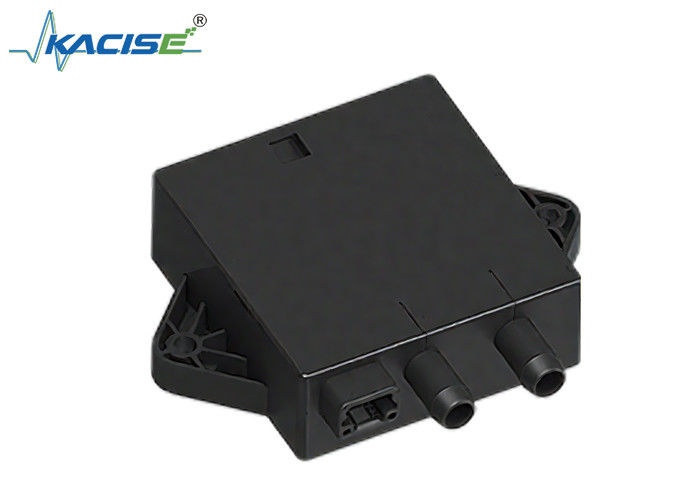

KGD ATRS 316 Battery Thermal Runaway Monitoring Sensor with Measurement Principle NDIR Dual channel MOX Light Scattering

Product Overview

The KGD-ATRS-316 battery thermal runaway monitoring sensor effectively monitors CO₂, CO, and particulate matter concentrations released prior to battery thermal runaway events. It transmits measurement signals to the BMS via CAN or LIN communication (customizable), featuring precise measurement, rapid response, minimal cross-interference, low power consumption, extended service life, and high reliability.

Key Features

Ultra-low power consumption design
Eliminates gas cross-interference to prevent false alarms
High precision measurements with fast response time
Vehicle-grade construction for harsh automotive environments

Technical Specifications

Attribute	Value
Measurement Principle	NDIR Dual-channel + MOX + Light Scattering
Measured Components	PM2.5 + CO2 + CO
Communication Method	CAN
Communication Parameter	500k
Measuring Range	CO2: 0-10000ppm CO: 0-1000ppm (Display up to 10000ppm) PM: 0-5mg/mATRS
Response Time	T90 ≤ 15s
Resolution	CO2/CO: 1ppm; PM: 1μg/m³
Measurement Accuracy	CO2: ±200ppm or ±20% of reading (0-5000ppm, -20°C-60°C) CO: ±40ppm or ±30% of reading (whichever is larger) PM: ≤100ug/mATRS: ±15ug/mATRS; >100ug/mATRS: ±15% reading (-40°C-70°C)
