Name: Battery Thermal Runaway Monitoring Sensor KGD ATRS 312 With NDIR Dual Channel MOX Light Scattering Measurement Principle
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-ATRS-312
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Battery Thermal Runaway Monitoring Sensor KGD ATRS 312 With NDIR Dual Channel MOX Light Scattering Measurement Principle

Monitoring Sensor KGD ATRS 312

NDIR Dual Channel Monitoring Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-ATRS-312

Request A Quote

Product Details

Measurement Principle:

NDIR Dual - Channel + MOX + Light Scattering

Measured Components:

PM2.5 + CO₂ + H₂

Communication Method:

CAN

Communication Parameter:

500k

Response Time:

T90 ≤ 15s

Resolution:

CO₂/H₂: 1ppm；PM: 1μg/m³

Highlight:

Monitoring Sensor KGD ATRS 312

NDIR Dual Channel Monitoring Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD MQ 531 Biogas Analyzer Smart Portable Type Bluetooth 4.0 Communication and Electrical Parameters

Get Best Price

Flow Guiding Type Gas Sampling Method Direct Insertion Oxygen Analyzer KGD-MQ-512 50mm Pipe Diameter For Industrial

Get Best Price

Mainstream End Tidal Carbon Dioxide Sensor KGD - 412 for Measuring End - Tidal CO₂ Concentration

Get Best Price

86--17719566736

Contact Now

Product Description

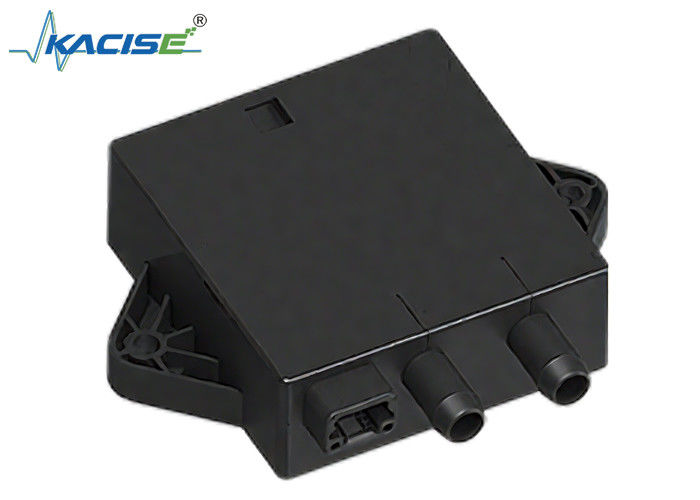

Battery Thermal Runaway Monitoring Sensor KGD ATRS 312 With NDIR Dual Channel MOX Light Scattering Measurement Principle

Product Overview

The KGD-ATRS-312 battery thermal runaway monitoring sensor effectively monitors indicators such as the concentration of CO₂, H₂, and particulate matter released before battery thermal runaway triggering. It transmits measurement signals to the BMS via CAN or LIN communication (customizable).

Key Features

Ultra-low power consumption
No gas cross-interference, preventing missed and false alarms
High precision and fast response time
Vehicle-grade design, adaptable to harsh in-vehicle environments

Technical Specifications

Attribute	Value
Measurement Principle	NDIR Dual-channel + MOX + Light Scattering
Measured Components	PM2.5 + CO₂ + H₂
Communication Method	CAN
Communication Parameter	500k
Response Time	T90 ≤ 15s
Resolution	CO₂/H₂: 1ppm; PM: 1μg/m³

Detailed Technical Parameters

Parameter	Specification
Measuring Range	CO₂: 0-10000ppm H₂: 0-4%vol PM: 0-5mg/mATRS
Measurement Accuracy	CO₂: ±200ppm or ±20% of reading (0-5000ppm, -20°C-60°C) H₂: ±(0.1%vol + 10%) PM: ≤100ug/mATRS: ±15ug/mATRS; >100ug/mATRS: ±15% reading (-40°C-70°C)
