Name: Battery Thermal Runaway Monitoring Sensor with NDIR Dual-channel + MOX + Light Scattering, CAN Communication, and T90 ≤ 15s Response Time
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-ATRS-312
Price: 72.00 USD
Availability: InStock

Home > Products > Gas Detector Sensor >

Battery Thermal Runaway Monitoring Sensor with NDIR Dual-channel + MOX + Light Scattering, CAN Communication, and T90 ≤ 15s Response Time

Monitoring Sensor KGD ATRS 312

NDIR Dual Channel Monitoring Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-ATRS-312

Request A Quote

Battery Thermal Runaway Monitoring Sensor with NDIR Dual-channel + MOX + Light Scattering, CAN Communication, and T90 ≤ 15s Response Time

Product Details

Measurement Principle:

NDIR Dual - Channel + MOX + Light Scattering

Measured Components:

PM2.5 + CO₂ + H₂

Communication Method:

CAN

Communication Parameter:

500k

Response Time:

T90 ≤ 15s

Resolution:

CO₂/H₂: 1ppm；PM: 1μg/m³

Highlight:

Monitoring Sensor KGD ATRS 312

NDIR Dual Channel Monitoring Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Online Coal Gas Analyzer with Multi-component Measurement High Accuracy and Automated Calorific Value Calculation

Get Best Price

In-situ Zirconia Gas Analyzer with Simultaneous O₂ and COe Measurement, High Temperature Resistance up to 1500°C, and RS-485/MODBUS Communication

Get Best Price

KGD-WQ-513 Vehicle Emission Gas Analyzer with High-Precision Micro-Flow Infrared Sensor for Direct NO and NO₂ Measurement and Multi-Stage Filtration

Get Best Price

KGD-WQ-524 Zero Gas Generator with 16L/min Flow Rate 6-Channel Output and 6-Year Service Life for Vehicle Exhaust Detection

Get Best Price

Contact Now

Product Description

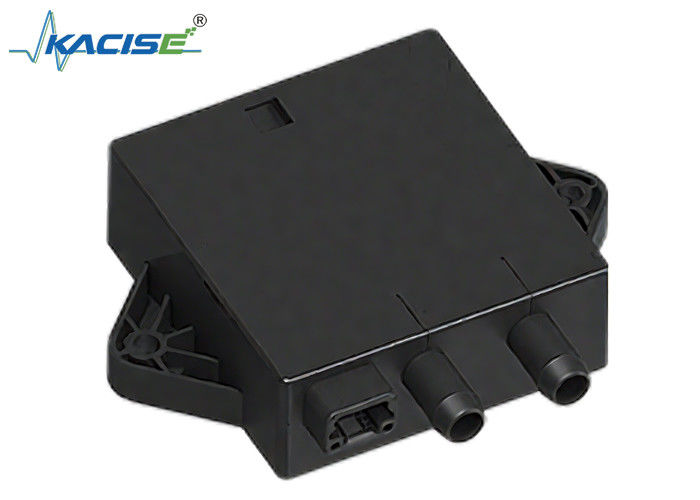

Battery Thermal Runaway Monitoring Sensor KGD - ATRS - 312

Product Introduction

The KGD - ATRS - 312 battery thermal runaway monitoring sensor effectively monitors indicators such as CO₂, H₂, and particulate matter concentrations released prior to battery thermal runaway triggering. It transmits measurement signals to the BMS via CAN or LIN communication (customizable). This sensor features accurate measurement, fast response time, low cross-interference, low power consumption, long service life, and high reliability.

Product Features

Ultra-low power consumption
No gas cross-interference, preventing missed and false alarms
High precision and fast response time
Vehicle-grade design, adaptable to harsh in-vehicle environments

Technical Parameters

Measurement Principle	NDIR Dual-channel + MOX + Light Scattering
Measured Components	PM2.5 + CO₂ + H₂
Communication Method	CAN
Communication Parameter	500k
Measuring Range	CO₂: 0 - 10000ppm H₂: 0 - 4%vol PM: 0 - 5mg/mATRS
Response Time	T90 ≤ 15s
Measurement Accuracy	CO₂: ±200ppm or ±20% of the reading (0 - 5000ppm, -20°C - 60°C) H₂: ±(0.1%vol + 10%) PM: ≤100ug/mATRS: ±15ug/mATRS; >100ug/mATRS: ±15% reading (-40°C - 70°C)
