Name: R744 (CO₂) Leakage Monitoring Gas Sensor KGD - ARS - 308 for Automotive Fresh Air Control
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-ARS-308
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

R744 (CO₂) Leakage Monitoring Gas Sensor KGD - ARS - 308 for Automotive Fresh Air Control

Automotive Fresh Air Control Gas Sensor

CO₂ Leakage Monitoring Gas Sensor

R744 Leakage Monitoring Gas Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-ARS-308

Request A Quote

Product Details

Detection Range:

400 - 40000ppm

Operating Temperature:

-40°C - 85°C

Storage Temperature:

-40°C - 95°C

Supply Voltage:

DC 9V - 16V

Operating Current:

≤100mA

Communication Method:

LIN

Highlight:

Automotive Fresh Air Control Gas Sensor

CO₂ Leakage Monitoring Gas Sensor

R744 Leakage Monitoring Gas Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

R744 (CO₂) Leakage Monitoring Gas Sensor KGD - ARS - 308 for Automotive Fresh Air Control

Product Overview

The KGD - ARS - 308 is a carbon dioxide sensor based on Non-Dispersive Infrared (NDIR) technology. Designed for automotive HVAC applications, it utilizes dual-channel diffusion sampling to enable automatic fresh air control of CO₂ refrigerant. This system helps maintain cabin air quality and improves driver alertness.

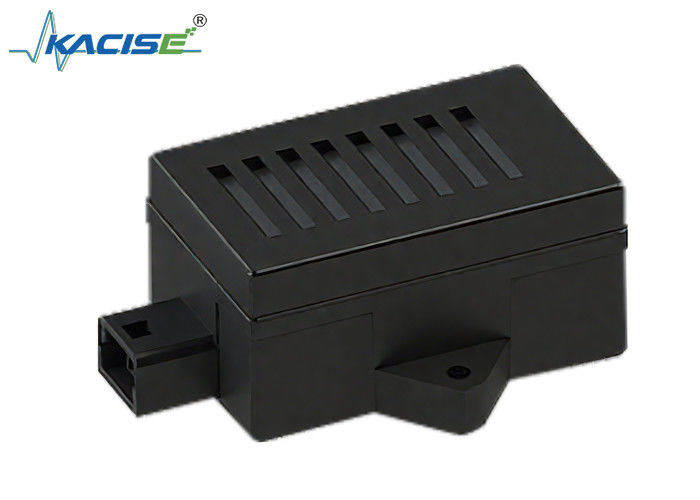

R744 CO₂ Leakage Monitoring Gas Sensor KGD-ARS-308

Key Features

Dual-light-source NDIR technology for enhanced accuracy
Maintains measurement precision across full temperature and pressure ranges
400-40000ppm detection range for R744 refrigerant leakage monitoring
Compatible with PM2.5 sensors for comprehensive air quality monitoring
Minimal zero-point drift with excellent stability
Fast response time (T90 < 20s) with large-area gas-permeable membrane and automatic following algorithm

Technical Specifications

Parameter	Value
Detection Range	400 - 40000ppm
Detection Accuracy	≤750ppm: ±75ppm 750-5000ppm: ±10% of reading 5000-40000ppm: ±20% of reading
Operating Temperature	-40°C - 85°C
Storage Temperature	-40°C - 95°C
Supply Voltage	DC 9V - 16V
Operating Current	≤100mA
Communication Method	LIN
Installation Location	Automotive air conditioning systems

Application

This sensor is specifically designed for automotive HVAC systems to monitor R744 (CO₂) refrigerant leakage and provide timely alerts. Its integration enables automatic fresh air control, ensuring optimal cabin air quality and driver comfort.
