Name: Hand - Held Electrolyte Leakage Detector KGD - AM - 311 For Detecting Electrolyte Leakage Content In The Tested Environment
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-AM-311
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Hand - Held Electrolyte Leakage Detector KGD - AM - 311 For Detecting Electrolyte Leakage Content In The Tested Environment

KGD AM 311 Electrolyte Leakage Detector

Hand held Electrolyte Leakage Detector

Tested Environment Electrolyte Leakage Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-AM-311

Request A Quote

Product Details

Detection Principle:

Non - Dispersive Infrared (NDIR) Detection Technology

Detected Gas Types:

Electrolyte Vapors Such As DMC, EMC, EC

Sensitivity Levels:

High, Medium, Low

Maximum Sensitivity:

0.03 Oz/year (1g/a) When Stationary; 0.1 Oz/year (3g/a) When In Motion

Detection Feedback:

Red LED, LCD Bar Graph, LCD Digits, Buzzer

Response Time (T90):

<30 Seconds (typical Value)

Highlight:

KGD AM 311 Electrolyte Leakage Detector

Hand held Electrolyte Leakage Detector

Tested Environment Electrolyte Leakage Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD MQ 531 Biogas Analyzer Smart Portable Type Bluetooth 4.0 Communication and Electrical Parameters

Get Best Price

Flow Guiding Type Gas Sampling Method Direct Insertion Oxygen Analyzer KGD-MQ-512 50mm Pipe Diameter For Industrial

Get Best Price

Mainstream End Tidal Carbon Dioxide Sensor KGD - 412 for Measuring End - Tidal CO₂ Concentration

Get Best Price

86--17719566736

Contact Now

Product Description

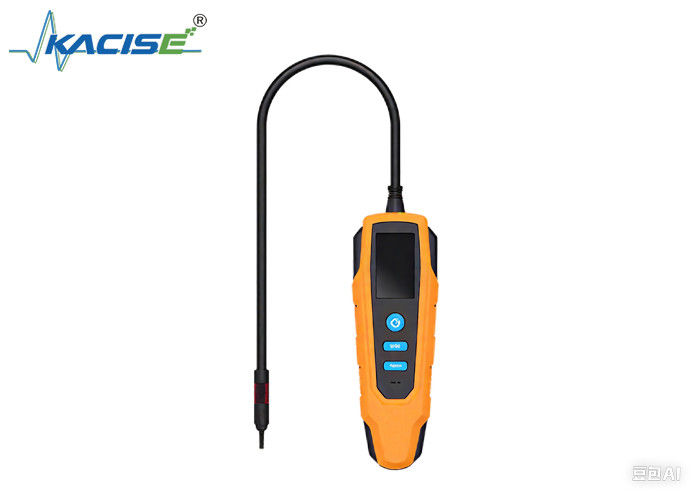

Hand-Held Electrolyte Leakage Detector KGD-AM-311

Product Overview

The KGD-AM-311 is a portable electrolyte leakage detector featuring TFT liquid-crystal display for both leak point detection and quantitative analysis of electrolyte leakage concentration in the environment.

Key Attributes

Attribute	Value
Detection Principle	Non-Dispersive Infrared (NDIR) Detection Technology
Detected Gas Types	Electrolyte vapors such as DMC, EMC, EC
Sensitivity Levels	High, Medium, Low
Maximum Sensitivity	0.03 oz/year (1g/a) when stationary; 0.1 oz/year (3g/a) when in motion
Detection Feedback	Red LED, LCD bar graph, LCD digits, Buzzer
Response Time (T90)	<30 seconds (typical value)

Product Features

Infrared-type sensor with independent intellectual property rights
High selectivity and good repeatability for electrolyte leakage
Ensures high detection accuracy across full temperature and range
Fast response time
Powered by lithium-ion battery, rechargeable via Type-C interface
Fault self-check function
High reliability with service life over 10 years
Data visualization with clear display
Compact and portable design

Technical Specifications

Parameter	Details
Recovery Time	<10 seconds (typical value)
Preheating Time	<12s
Display Resolution	1ppm
Accuracy	±(5ppm + 10% reading)
Display Range	0-9999ppm
Battery Performance	Charging time: 3.5H; Working time: 8H
Net Weight	360g ± 20g
IP Protection Level	IP54
Product Standard	EN14624
Working Conditions	0°C to 40°C (32°F to 104°F); <75%RH (non-condensing)
Storage Conditions	-20°C to 60°C (-4°F to 140°F); <80%RH
Input Voltage	5V ± 5%
Input Current	1A ± 5%
