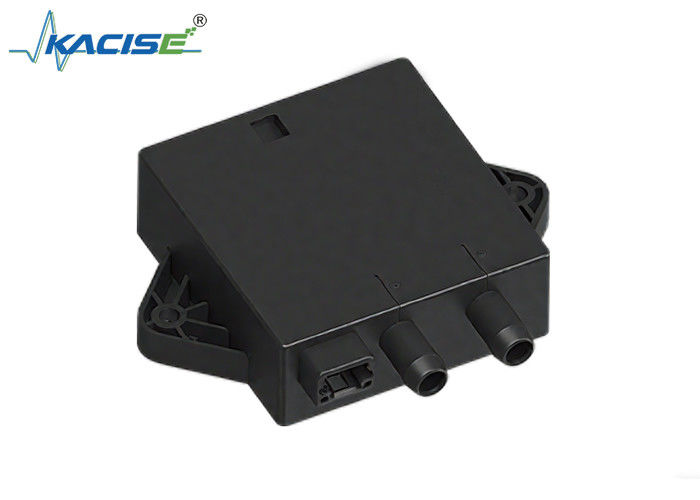

Name: Automotive PM2.5 + CO₂ Integrated Sensor KGD - AIS - 304 For Monitoring In - Vehicle Temperature
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-AIS-304
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Automotive PM2.5 + CO₂ Integrated Sensor KGD - AIS - 304 For Monitoring In - Vehicle Temperature

CO₂ Integrated Sensor KGD - AIS - 304

Automotive PM2.5 Integrated Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-AIS-304

Request A Quote

Product Details

Detected Gases:

PM2.5, CO₂

Technical Principle:

PM2.5: Laser Scattering；CO₂: Single - Light - Source NDIR, Dual - Channel

Detection Range:

PM2.5: 0 - 1000μg/m³；CO₂: 400 - 10000ppm

Response Time:

PM2.5: T90 ≤ 12s；CO₂: T90 ≤ 25s

Preheating Time:

<10s (start - Up Time)

Storage Temperature:

-40°C - 95°C

Highlight:

CO₂ Integrated Sensor KGD - AIS - 304

Automotive PM2.5 Integrated Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD MQ 531 Biogas Analyzer Smart Portable Type Bluetooth 4.0 Communication and Electrical Parameters

Get Best Price

Flow Guiding Type Gas Sampling Method Direct Insertion Oxygen Analyzer KGD-MQ-512 50mm Pipe Diameter For Industrial

Get Best Price

Mainstream End Tidal Carbon Dioxide Sensor KGD - 412 for Measuring End - Tidal CO₂ Concentration

Get Best Price

86--17719566736

Contact Now

Product Description

Automotive PM2.5 + CO₂ Integrated Sensor KGD - AIS - 304 For Monitoring In-Vehicle Temperature

Key Specifications

Attribute	Value
Detected Gases	PM2.5, CO₂
Technical Principle	PM2.5: Laser scattering CO₂: Single-light-source NDIR, dual-channel
Detection Range	PM2.5: 0-1000μg/m³ CO₂: 400-10000ppm
Response Time	PM2.5: T90 ≤ 12s CO₂: T90 ≤ 25s
Preheating Time	<10s (start-up time)
Storage Temperature	-40°C - 95°C

Product Overview

The KGD-AIS-304 is a vehicle-used sensor based on optical principles. It can detect PM2.5 and CO₂, and can also be extended to monitor the in-vehicle temperature. This product meets accuracy requirements across the entire temperature range.

Automotive PM2.5 + CO₂ Integrated Sensor KGD-AIS-304

Key Features

Dual-function detection of PM2.5 and CO₂, with the ability to extend for in-vehicle temperature monitoring
Ensures measurement accuracy across the entire temperature and pressure range
Protection level IP65, compact size

Technical Parameters

Items	Details
Detected Gases	PM2.5, CO₂
Technical Principle	PM2.5: Laser scattering CO₂: Single-light-source NDIR, dual-channel
Detection Range	PM2.5: 0-1000μg/m³ CO₂: 400-10000ppm
Detection Accuracy	PM2.5: ±15% of the reading or ±15μg/m³ (-20°C - 75°C, calibrated against TSI8530) CO₂: 400ppm - 10000ppm -20°C - 75°C: ±100ppm or ±10% -40°C - 20°C, 75°C - 90°C: ±200ppm or ±20% (take the larger value)
Response Time	PM2.5: T90 ≤ 12s CO₂: T90 ≤ 25s
Preheating Time	<10s (start-up time)
Operating Temperature	PM2.5: -40°C - 75°C CO₂: -40°C - 85°C
Storage Temperature	-40°C - 95°C
Installation Locations	Automotive air-conditioning, glove box, dashboard, etc.
