Name: In-situ Zirconia Gas Analyzer with Simultaneous O₂ and COe Measurement, High Temperature Resistance up to 1500°C, and RS-485/MODBUS Communication
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-MQ-511
Price: 72.00 USD
Availability: InStock

Home > Products > Gas Detector Sensor >

In-situ Zirconia Gas Analyzer with Simultaneous O₂ and COe Measurement, High Temperature Resistance up to 1500°C, and RS-485/MODBUS Communication

Zirconia Gas Analyzer KGD - MQ - 511

In situ Zirconia Gas Analyzer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-MQ-511

Request A Quote

In-situ Zirconia Gas Analyzer with Simultaneous O₂ and COe Measurement, High Temperature Resistance up to 1500°C, and RS-485/MODBUS Communication

Product Details

Component Range:

O₂: 0 - 25%; COe: 0 - 10000ppm

Response Time:

O₂: T90 ≤ 10s; COe: T90 ≤ 20s

Measurement Accuracy:

O₂: ±1.0%F.S. Or 0.2%; COe: ±5%F.S. Or 25ppm

Resolution:

O₂: 0.01%COe: 1ppm

Communication Method:

RS - 485/MODBUS

Output:

2 - Way 4 - 20mA, 3 - Way Adjustable Alarm

Highlight:

Zirconia Gas Analyzer KGD - MQ - 511

In situ Zirconia Gas Analyzer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Online Coal Gas Analyzer with Multi-component Measurement High Accuracy and Automated Calorific Value Calculation

Get Best Price

In-situ Zirconia Gas Analyzer with Simultaneous O₂ and COe Measurement, High Temperature Resistance up to 1500°C, and RS-485/MODBUS Communication

Get Best Price

KGD-WQ-513 Vehicle Emission Gas Analyzer with High-Precision Micro-Flow Infrared Sensor for Direct NO and NO₂ Measurement and Multi-Stage Filtration

Get Best Price

KGD-WQ-524 Zero Gas Generator with 16L/min Flow Rate 6-Channel Output and 6-Year Service Life for Vehicle Exhaust Detection

Get Best Price

Contact Now

Product Description

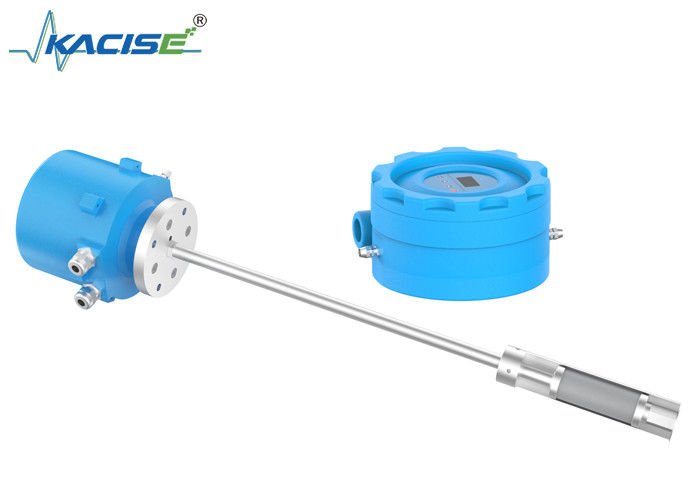

In-situ Zirconia Gas Analyzer KGD-MQ-511

Product Introduction

The In-situ Zirconia Gas Analyzer KGD-MQ-511 is a high-temperature analyzer designed for simultaneous monitoring of oxygen and combustible gas COe. Utilizing zirconia limiting current and thick-film catalysis principles, this flange-mounted analyzer employs flow-guiding measurement to maintain continuous, real-time stable monitoring in harsh environments including high temperature and high dust conditions.

Product Features

Simultaneously measures oxygen and combustible gas COe with high precision
Wide measurement temperature range, up to 1500°C maximum
Sensor features constant temperature treatment to eliminate ambient and inlet gas temperature influences
Sampling probe rod includes filter and baffle design for high-dust condition operation

Technical Parameters

Parameter	Specification
Component Range	O₂: 0-25%; COe: 0-10000ppm
Response Time	O₂: T90 ≤ 10s; COe: T90 ≤ 20s
Measurement Accuracy	O₂: ±1.0%F.S. or 0.2%; COe: ±5%F.S. or 25ppm
Resolution	O₂: 0.01%; COe: 1ppm
Communication Method	RS-485/MODBUS
Output	2-way 4-20mA, 3-way adjustable alarm
Ambient Temperature	Control Unit: -40°C to 65°C; Sensor Unit: -40°C to 120°C
Protection Grade	IP66
Probe Material	S316L, Alloy 600, Alumina (customizable length)
Installation Flange	DN50 (customizable)
