Automotive Carbon Dioxide Sensor KGD - ACDS - 305

Automotive Carbon Dioxide Sensor KGD - ACDS - 305

ACDS 305 Carbon Dioxide Sensor

Automotive Carbon Dioxide Sensor

KGD ACDS 305 Carbon Dioxide Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KGD-ACDS-305

Contact Us
Request A Quote
Automotive Carbon Dioxide Sensor KGD - ACDS - 305
Product Details
Detection Principle:
Dual - Channel Non - Dispersive Infrared Spectral Absorption Technology (NDIR)
Detected Substance:
CO₂
Detection Range:
0ppm - 10000ppm (can Measure Up To 40000ppm)
Resolution:
1ppm
Detection Accuracy:
±(50ppm + 5% Of The Reading)
Data Update:
≤1s
Highlight:

ACDS 305 Carbon Dioxide Sensor

,

Automotive Carbon Dioxide Sensor

,

KGD ACDS 305 Carbon Dioxide Sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

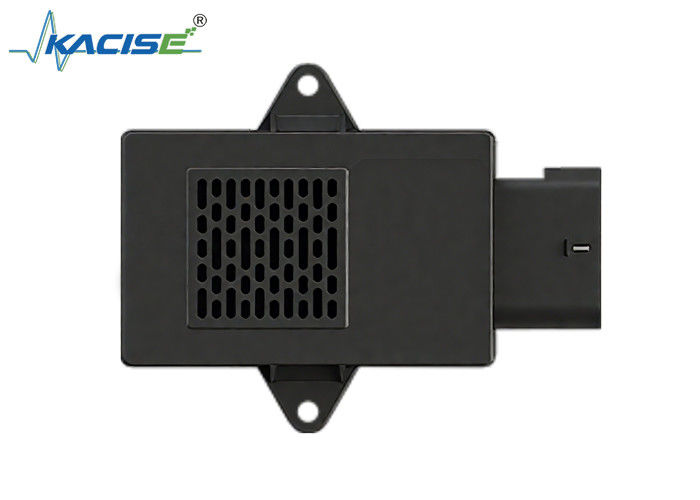

Automotive Carbon Dioxide Sensor KGD - ACDS - 305



Product Introduction
The KGD - ACDS - 305 automotive carbon dioxide sensor is a Non - Dispersive Infrared (NDIR) carbon dioxide sensor. It adopts the method of dual - channel diffusion sampling to achieve automatic control of the in - cabin fresh air system for automotive HVAC applications, providing fresh air in the cabin at any time to enhance in - cabin comfort. Meanwhile, it can effectively monitor the refrigerant leakage of CO₂ heat pump air - conditioners and transmit the measurement signals to the automotive main control system via LIN communication. This solution features accurate measurement, fast response time, low cross - interference, low power consumption, and long service life.
Automotive Carbon Dioxide Sensor KGD - ACDS - 305 0
Product Features
  • The measurement of CO₂ adopts the Non - Dispersive Infrared Spectral Absorption Technology (NDIR). The accuracy can reach ±(50ppm + 5% of the reading) within the measurement range of 0 - 10000ppm; fast response time with T90 ≤ 25s, no gas cross - interference, ultra - low power consumption mode reaching μA level, and a service life of up to 15 years.
  • Wide - range design: capable of measuring concentrations up to 40000ppm.
  • The sensor adopts a vehicle - grade mature circuit design, adaptable to harsh in - vehicle environments.
  • LIN communication, and the protection level meets the requirements of IP54.
Technical Parameters
Items Details
Detection Principle Dual - channel Non - Dispersive Infrared Spectral Absorption Technology (NDIR)
Detected Substance CO₂
Detection Range 0ppm - 10000ppm (can measure up to 40000ppm)
Resolution 1ppm
Detection Accuracy ±(50ppm + 5% of the reading)
Data Update ≤1s
Response Time T90 ≤ 25s
Output Mode LIN
Designed Service Life 15 years
Operating Conditions -40°C - 85°C; 0 - 99%RH (non - condensing)
Storage Conditions -40°C - 95°C; 0 - 99%RH (non - condensing)
Operating Pressure 80kPa - 120kPa
Protection Level IP54
Supply Voltage 9 - 16VDC, standard voltage +12VDC
Average Operating Current ≤100mA, @ +12VDC
Quiescent State ≤100μA, standby mode
