Name: Integrated Air Quality Sensor Module KGD - AM - 310 For Energy Storage Cabinets
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-AM-310
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Integrated Air Quality Sensor Module KGD - AM - 310 For Energy Storage Cabinets

Integrated Air Quality Sensor Module

Air Quality Sensor Module KGD - AM - 310

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-AM-310

Request A Quote

Product Details

Detection Principle:

Light Scattering Principle / Semiconductor

Detection Range:

Smoke: 0 - 5000μg/m³; CO: 0 - 1000ppm; Temperature: -10 - 60°C

Detection Accuracy:

Smoke: ±20% Of The Reading Or ±200μg/m³; CO: 30% Of The Reading Or ±40ppm; Temperature: ±1°C

Alarm Threshold:

Smoke: ≥2000μg/m³; CO: ≥300ppm; Temperature: ≥55°C

Data Update Frequency:

Operating Conditions:

-10 - 60°C, 0 - 95%RH (non - Condensing)

Highlight:

Integrated Air Quality Sensor Module

Air Quality Sensor Module KGD - AM - 310

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

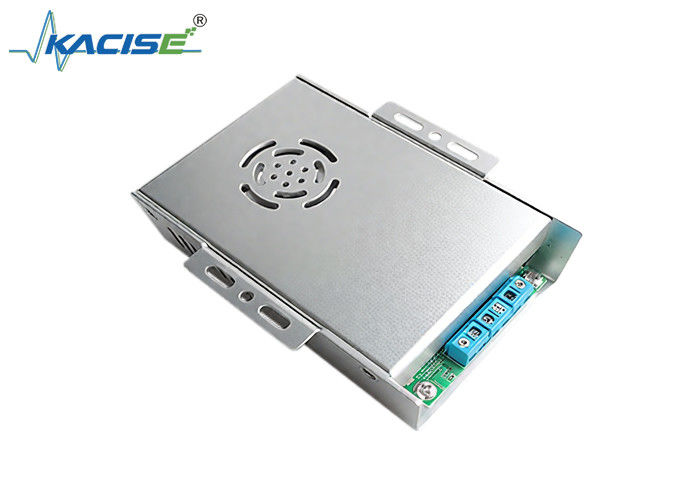

Integrated Air Quality Sensor Module KGD - AM - 310 For Energy Storage Cabinets

Product Overview

The Integrated Thermal Runaway Sensor Module KGD - AM - 310 is a cost-effective solution for real-time air quality monitoring in energy storage systems. This compact module provides accurate measurements of CO concentration, smoke density, and temperature, making it ideal for battery safety applications.

Key Features

Simultaneous monitoring of CO, smoke, and temperature
High precision with minimum resolvable particle size of 0.3μm
Constant-current sampling design ensures reliable performance
Compact dimensions (100×60×24.5mm) for easy integration
Wide operating voltage range (9-36V)
Switch quantity output communication interface

Technical Specifications

Parameter	Specification
Detection Principle	Light scattering principle / semiconductor
Detection Range	Smoke: 0 - 5000μg/m³; CO: 0 - 1000ppm; Temperature: -10 - 60°C
Detection Accuracy	Smoke: ±20% or ±200μg/m³; CO: 30% or ±40ppm; Temperature: ±1°C
Alarm Threshold	Smoke: ≥2000μg/m³; CO: ≥300ppm; Temperature: ≥55°C
Data Update Frequency	1 second
Operating Conditions	-10 - 60°C, 0 - 95%RH (non-condensing)
Storage Conditions	-30 - 70°C, 0 - 95%RH (non-condensing)
Average Operating Current	<100mA (CAN communication customizable)

Applications

This sensor module is specifically designed for use in:

Energy storage cabinets
Battery swap cabinets
Battery safety monitoring systems
Industrial air quality monitoring
