Name: Automotive Carbon Dioxide Sensor with Dual-light-source NDIR Technology and Expandable 40000ppm Detection Range for Vehicle CO₂ Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-ACDS-306
Price: 72.00 USD
Availability: InStock

Home > Products > Gas Detector Sensor >

Automotive Carbon Dioxide Sensor with Dual-light-source NDIR Technology and Expandable 40000ppm Detection Range for Vehicle CO₂ Monitoring

High Precision CO₂ Sensor KGD-ACDS-306

400-5000ppm CO₂ Sensor

In-Vehicle CO₂ Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-ACDS-306

Request A Quote

Product Details

Detection Range:

400 - 5000ppm (expandable To 40000ppm)

Detection Accuracy:

±(50ppm + 5% Of The Reading)

Operating Temperature:

-40°C - 85°C

Storage Temperature:

-40°C - 95°C

Supply Voltage:

DC 9 - 16V

Operating Current:

≤100mA

Highlight:

High Precision CO₂ Sensor KGD-ACDS-306

400-5000ppm CO₂ Sensor

In-Vehicle CO₂ Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Online Coal Gas Analyzer with Multi-component Measurement High Accuracy and Automated Calorific Value Calculation

Get Best Price

In-situ Zirconia Gas Analyzer with Simultaneous O₂ and COe Measurement, High Temperature Resistance up to 1500°C, and RS-485/MODBUS Communication

Get Best Price

KGD-WQ-513 Vehicle Emission Gas Analyzer with High-Precision Micro-Flow Infrared Sensor for Direct NO and NO₂ Measurement and Multi-Stage Filtration

Get Best Price

KGD-WQ-524 Zero Gas Generator with 16L/min Flow Rate 6-Channel Output and 6-Year Service Life for Vehicle Exhaust Detection

Get Best Price

Contact Now

Product Description

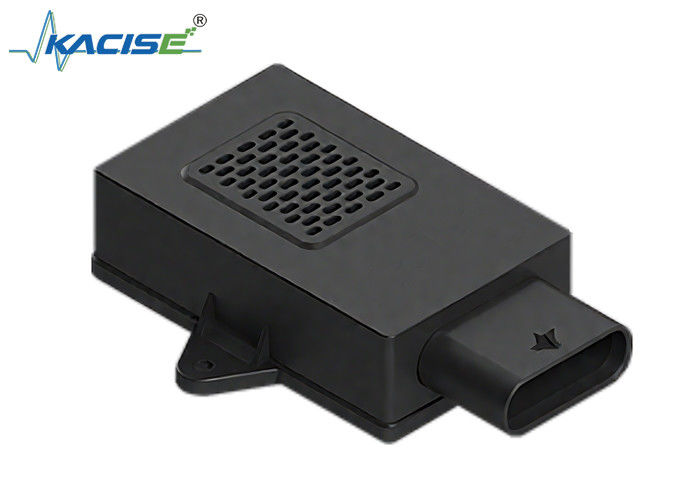

Automotive Carbon Dioxide Sensor KGD - ACDS - 306

Product Overview

The automotive carbon dioxide sensor KGD - ACDS - 306 works in intelligent coordination with automotive air-conditioners, striking a perfect balance between driving comfort and economy. This advantage is particularly important in new energy vehicles.

When applied in cars, the carbon dioxide sensor can determine whether there are any remaining occupants inside the vehicle based on changes in CO₂ concentration after locking the car, and provide timely alerts.

Product Features

Dual-light-source NDIR technology
Ensures measurement accuracy across the full temperature and pressure range
Detection range up to 40,000ppm for detecting R744 refrigerant leakage with timely alerts
Can be deeply integrated with PM2.5 sensors
Small zero-point drift and excellent stability

Technical Specifications

Parameter	Specification
Detection Range	400 - 5,000ppm (expandable to 40,000ppm)
Detection Accuracy	±(50ppm + 5% of reading)
Operating Temperature	-40°C to 85°C
Storage Temperature	-40°C to 95°C
Supply Voltage	DC 9 - 16V
Operating Current	≤100mA
Communication Method	LIN
Installation Location	Automotive air-conditioner
