Name: Extractive Laser Gas Analysis System KGD - MQ - 503
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-MQ-503
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Extractive Laser Gas Analysis System KGD - MQ - 503

Extractive Laser Gas Analysis System

Gas Analysis System KGD - MQ - 503

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-MQ-503

Request A Quote

Product Details

Measured Components:

H₂S, O₂, CO, CO₂, CH₄

Measurement Principle:

TDLAS

Accuracy:

≤ ±1%F.S.

Repeatability:

≤ ±1%

Span Drift:

≤ ±1%F.S.

Resolution:

0.01%VOL

Highlight:

Extractive Laser Gas Analysis System

Gas Analysis System KGD - MQ - 503

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

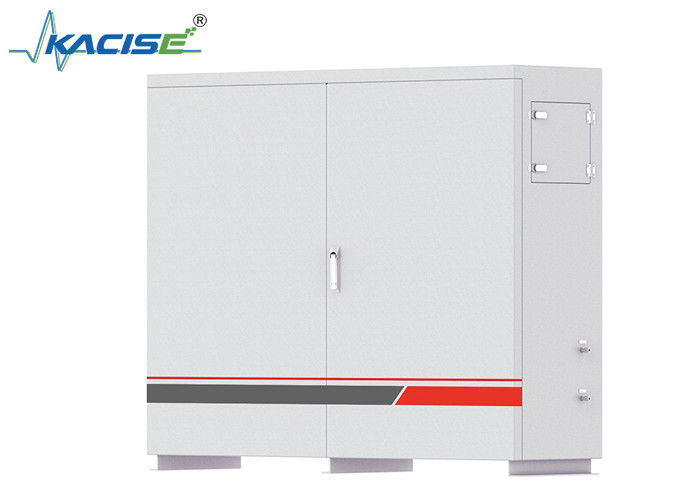

Extractive Laser Gas Analysis System KGD - MQ - 503

System Overview

This extractive laser gas analysis system is specifically designed for high-dust industrial environments. The system comprises four integrated components: sampling probe, pretreatment unit, control unit, and gas analysis unit. Utilizing Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology with transmissive design, it provides continuous, real-time gas concentration monitoring to optimize gas utilization, enhance energy efficiency, and ensure operational safety.

Key Features

Explosion-proof certification: Ex db IIC T6 Gb / Ex tb IIIC T80℃ Db for maximum safety
Probe with automatic purging function for reliable long-term performance
Automated sampling, back-flushing, and drainage operations
Multi-stage filtration system for continuous online operation
TDLAS technology eliminates cross-interference from background gases
Remote monitoring capability reduces maintenance requirements and costs
Exceptional performance in harsh conditions: high temperature, dust, moisture, corrosion, and flow velocity

Technical Specifications

Measurement Parameters

Measured Components	H₂S, O₂, CO, CO₂, CH₄
Measurement Principle	TDLAS
Accuracy	≤ ±1%F.S.
Repeatability	≤ ±1%
Span Drift	≤ ±1%F.S.
Resolution	0.01%VOL

Measurement Ranges

H₂S	0-100ppm, 0-5000ppm
O₂	(0-5)%VOL (Customizable to 100%)
CO	(0-100)%VOL
CO₂	(0-100)%VOL
CH₄	(0-20)%VOL

Operating Parameters

Explosion-proof Grade	Ex db IIC T6 Gb / Ex tb IIIC T80℃ Db
Ambient Temperature	(-20 - +60)℃
Power Supply	220V AC, 50Hz
Operating Gas	(0.3 - 0.8) MPa Industrial Nitrogen

Interface Specifications

Communication	RS485, RS232
Output Mode	2-way 4-20mA output, 3-way relay output
