Name: High Accuracy KGD MQ 518 Laser Trace Moisture Gas Analyzer with Measurement Range 0 50ppm 6000ppm
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-MQ-518
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

High Accuracy KGD MQ 518 Laser Trace Moisture Gas Analyzer with Measurement Range 0 50ppm 6000ppm

6000ppm Laser Trace Moisture Gas Analyzer

High Accuracy Moisture Gas Analyzer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-MQ-518

Request A Quote

Product Details

Measured Component:

H₂O

Measurement Principle:

TDLAS

Measurement Range:

0 - 50ppm ~ 6000ppm

Measurement Accuracy:

±2%F.S.

Resolution:

0.1 Ppm

Repeatability:

≤1.5%F.S.

Highlight:

6000ppm Laser Trace Moisture Gas Analyzer

High Accuracy Moisture Gas Analyzer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

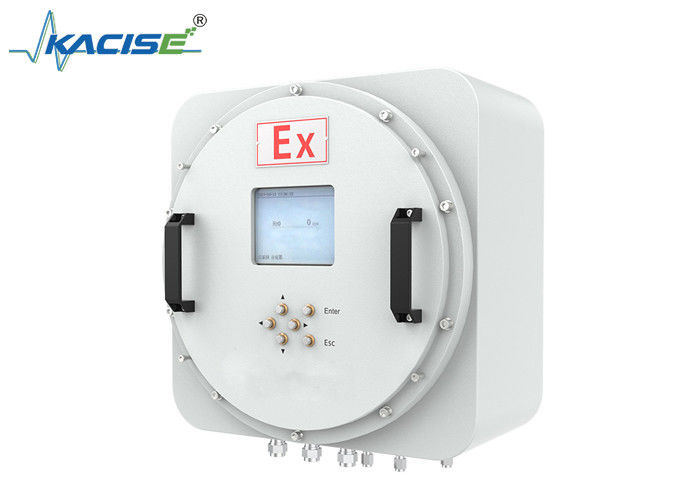

High Accuracy KGD MQ 518 Laser Trace Moisture Gas Analyzer

Precision Measurement Range: 0-50ppm to 6000ppm

Product Overview

The KGD-MQ-518 Laser Trace Moisture Gas Analyzer is a high-performance optical instrument designed for precise gas humidity measurement. Engineered for industrial applications, it delivers exceptional accuracy, rapid response times, and outstanding reliability in demanding environments.

Key Features

Customizable measurement range for versatile application requirements
TDLAS technology ensures long service life and instantaneous response
Exceptional measurement precision with high sensitivity and stability
Operates without refrigeration requirements
Measurement integrity unaffected by background gas composition
Multiple output options including analog and digital signal interfaces
High-grade explosion-proof and environmental protection ratings

Technical Specifications

Measured Component	H₂O
Measurement Principle	TDLAS
Measurement Range	0-50ppm ~ 6000ppm
Measurement Accuracy	±2%F.S.
Resolution	0.1 ppm
Repeatability	≤1.5%F.S.
Explosion-proof Grade	Ex db IIC T6 Gb / Ex tb IIIC T80℃ Db
Protection Grade	IP66
Ambient Temperature	-10℃ - 50℃
Working Humidity	0-98%RH (non-condensing)
Working Pressure	Inlet: 140-310kPa; Gas cell: 800-1200mbar
Power Supply	24 VDC ±20% or 100-240 VAC ±10%, 50/60Hz, 10W
Communication Interfaces	RS-485, 4-20mA, Modbus, Ethernet
Dimensions (L×W×H)	400×400×250(mm)
Weight	36kg

Industrial Applications

Ideal for critical moisture measurement in natural gas processing, including LNG production and NGL recovery units. The analyzer provides reliable dew-point detection in cryogenic processes, ensuring process efficiency and product quality.
