Name: Portable Infrared Natural Gas Calorific Value Analyzer KGD - MQ - 519
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-MQ-519
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Portable Infrared Natural Gas Calorific Value Analyzer KGD - MQ - 519

Natural Gas Calorific Value Analyzer

Portable Infrared Gas Calorific Value Analyzer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-MQ-519

Request A Quote

Product Details

Measured Components:

CH₄, CO₂, CₙHₘ*, Calorific Value

Measurement Principle:

NDIR

Measurement Range:

CH₄/CO₂: (0 - 100)%; CₙHₘ: (0 - 10)%

Linear Error:

±1%F.S.

Resolution:

0.0001

Repeatability:

≤ 1%

Highlight:

Natural Gas Calorific Value Analyzer

Portable Infrared Gas Calorific Value Analyzer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD MQ 531 Biogas Analyzer Smart Portable Type Bluetooth 4.0 Communication and Electrical Parameters

Get Best Price

Flow Guiding Type Gas Sampling Method Direct Insertion Oxygen Analyzer KGD-MQ-512 50mm Pipe Diameter For Industrial

Get Best Price

Mainstream End Tidal Carbon Dioxide Sensor KGD - 412 for Measuring End - Tidal CO₂ Concentration

Get Best Price

86--17719566736

Contact Now

Product Description

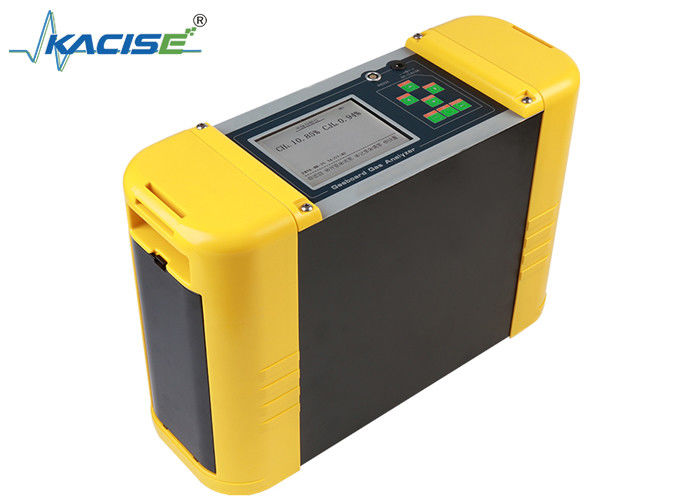

Portable Infrared Natural Gas Calorific Value Analyzer KGD - MQ - 519

Product Specifications

Attribute	Value
Measured Components	CH₄, CO₂, CₙHₘ*, Calorific Value
Measurement Principle	NDIR
Measurement Range	CH₄/CO₂: (0 - 100)%; CₙHₘ: (0 - 10)%
Linear Error	±1%F.S.
Resolution	0.0001
Repeatability	≤ 1%

Product Description

The Portable Infrared Natural Gas Calorific Value Analyzer KGD - MQ - 519 adopts non-dispersive infrared (NDIR) gas analysis technology with independent intellectual property rights. It can simultaneously measure the calorific values of coal-bed methane and natural gas, as well as the volume concentrations of multi-component gases such as CH₄ and CₙHₘ.

Key Features

Simultaneous measurement: Measures gas components and calorific values simultaneously, replacing combustion-type calorific value meters.
High accuracy: NDIR technology eliminates cross-interference among measured gas components.
Portable design: Suitable for both field industrial measurement and laboratory analysis.
Data management: Automatic data storage with query/delete functions and multiple interface options.
Power management: Soft-start power switch prevents low-power operation.
Low operating costs: No chemical reagents or consumables required.

Technical Parameters

Response Time	T90 < 10s (NDIR)
Optimal Flow Rate	(0.7 - 1.2) L/min
Inlet Pressure	(2 - 50) kPa
Gas Requirements	Dust-free, water-free, oil-free
Communication	RS-232
Power Supply	Built-in rechargeable lithium-ion battery with external 12.6V charger
Display	LCD Display
Additional Features	Built-in imported sampling air pump with self-diagnosis function
