Name: On - Line Coal Gas Analyzer KGD - MQ - 521 For On - Line Measurement Of Gas Volume Concentration.
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-MQ-521
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

On - Line Coal Gas Analyzer KGD - MQ - 521 For On - Line Measurement Of Gas Volume Concentration.

On Line Gas Volume Concentration Analyzer

KGD MQ 521 Coal Gas Analyzer

On Line Coal Gas Analyzer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-MQ-521

Request A Quote

Product Details

Measurement Component:

CO/CO2/CH4/H2/O2/C2H2/C2H4/CnHm*/Calorific Value

Measurement Principle:

CO/CO2/CH4/C2H2/C2H4/CnHm: NDIR; H2: TCD; O2: ECD

Measurement Range:

CO/CO2/CH4/H2: (0~100)%; O2: (0~25)%; C2H2/C2H4/CnHm: (0~10%) (Optional)

Measurement Accuracy:

CO/CO2/CH4/H2: (0~100)±0.25%; C2H2/C2H4/CnHm: (0~10)±0.25% (Optional)

Linear Error:

CO/CO2/CH4/C2H2/C2H4/CnHm: ±1%F.S.; O2/H2: ±2%F.S.

Resolution:

0.0001

Highlight:

On Line Gas Volume Concentration Analyzer

KGD MQ 521 Coal Gas Analyzer

On Line Coal Gas Analyzer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

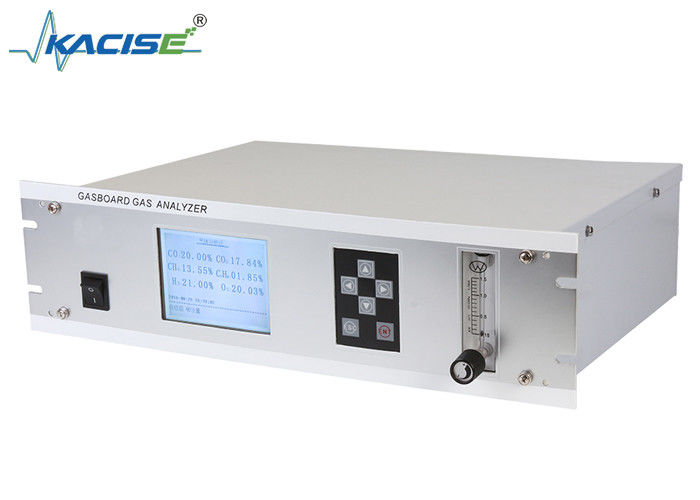

On-Line Coal Gas Analyzer KGD-MQ-521

For On-Line Measurement of Gas Volume Concentration

The On-Line Coal Gas Analyzer KGD-MQ-521 is designed for continuous measurement of gas volume concentration in industrial applications.

Product Introduction

The KGD-MQ-521 analyzer utilizes advanced non-dispersive infrared (NDIR) gas analysis technology combined with long-life electrochemical sensing and MEMS-based thermal conductivity technology. This system provides simultaneous measurement of coal gas and biogas calorific values along with volume concentrations of CO, CO₂, CH₄, H₂, O₂, and CₙHₘ gases.

Key Features

Comprehensive gas analysis: Measures volume concentrations of multiple gas components (CO, CO₂, CH₄, H₂, O₂, CₙHₘ) while automatically calculating and displaying calorific values for coal gas and natural gas.
High precision measurement: Eliminates cross-interference between measured gases, ensuring accurate results unaffected by gas sampling flow changes.
Automated operation: Features professional pre-treatment solution with digital/analog outputs, enabling real-time monitoring with minimal maintenance.
Durable construction: Constant-temperature sensor design with corrosion-resistant materials (stainless steel, PTFE) ensures long-term reliability.

Technical Specifications

Measurement Component	CO/CO₂/CH₄/H₂/O₂/C₂H₂/C₂H₄/CₙHₘ/Calorific Value
Measurement Principle	CO/CO₂/CH₄/C₂H₂/C₂H₄/CₙHₘ: NDIR; H₂: TCD; O₂: ECD
Measurement Range	CO/CO₂/CH₄/H₂: (0-100)%; O₂: (0-25)%; C₂H₂/C₂H₄/CₙHₘ: (0-10%) (Optional)
Measurement Accuracy	CO/CO₂/CH₄/H₂: ±0.25%; C₂H₂/C₂H₄/CₙHₘ: ±0.25% (Optional)
Linear Error	CO/CO₂/CH₄/C₂H₂/C₂H₄/CₙHₘ: ±1%F.S.; O₂/H₂: ±2%F.S.
Resolution	0.01%
Response Time	T90＜15s (NDIR)
Power Supply	100-240VAC, 100W
Communication	RS-485/RS-232, (4-20) mA

Additional Features

Built-in zero-adjustment air pump for automatic calibration
Calorific value units convertible between Kcal/m³ and MJ/m³
Self-diagnosis function with online sensor status monitoring
LCD display for real-time data visualization
