Name: Online Coal Gas Analyzer with Multi-component Measurement High Accuracy and Automated Calorific Value Calculation
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-MQ-521
Price: 72.00 USD
Availability: InStock

Home > Products > Gas Detector Sensor >

Online Coal Gas Analyzer with Multi-component Measurement High Accuracy and Automated Calorific Value Calculation

On Line Gas Volume Concentration Analyzer

KGD MQ 521 Coal Gas Analyzer

On Line Coal Gas Analyzer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-MQ-521

Request A Quote

Online Coal Gas Analyzer with Multi-component Measurement High Accuracy and Automated Calorific Value Calculation

Product Details

Measurement Component:

CO/CO2/CH4/H2/O2/C2H2/C2H4/CnHm*/Calorific Value

Measurement Principle:

CO/CO2/CH4/C2H2/C2H4/CnHm: NDIR; H2: TCD; O2: ECD

Measurement Range:

CO/CO2/CH4/H2: (0~100)%; O2: (0~25)%; C2H2/C2H4/CnHm: (0~10%) (Optional)

Measurement Accuracy:

CO/CO2/CH4/H2: (0~100)±0.25%; C2H2/C2H4/CnHm: (0~10)±0.25% (Optional)

Linear Error:

CO/CO2/CH4/C2H2/C2H4/CnHm: ±1%F.S.; O2/H2: ±2%F.S.

Resolution:

0.0001

Highlight:

On Line Gas Volume Concentration Analyzer

KGD MQ 521 Coal Gas Analyzer

On Line Coal Gas Analyzer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Online Coal Gas Analyzer with Multi-component Measurement High Accuracy and Automated Calorific Value Calculation

Get Best Price

In-situ Zirconia Gas Analyzer with Simultaneous O₂ and COe Measurement, High Temperature Resistance up to 1500°C, and RS-485/MODBUS Communication

Get Best Price

KGD-WQ-513 Vehicle Emission Gas Analyzer with High-Precision Micro-Flow Infrared Sensor for Direct NO and NO₂ Measurement and Multi-Stage Filtration

Get Best Price

KGD-WQ-524 Zero Gas Generator with 16L/min Flow Rate 6-Channel Output and 6-Year Service Life for Vehicle Exhaust Detection

Get Best Price

Contact Now

Product Description

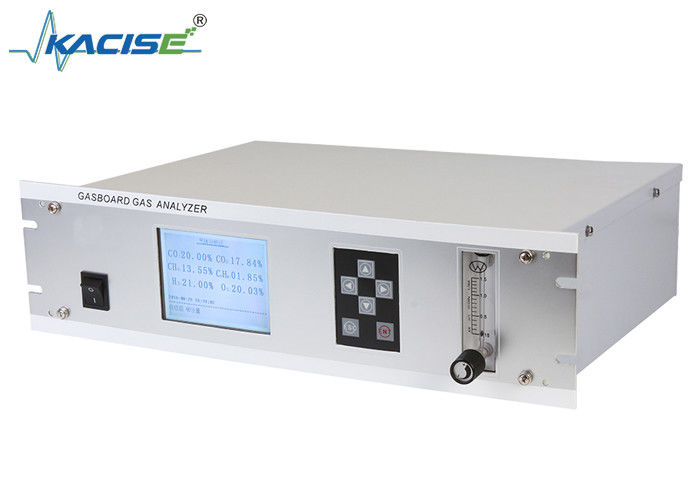

On-line Coal Gas Analyzer KGD-MQ-521

The On-line Coal Gas Analyzer KGD-MQ-521 is used for online measurement of gas volume concentration. This advanced analyzer adopts non-dispersive infrared (NDIR) gas analysis technology with independent intellectual property rights, long-life electrochemical sensing technology, and MEMS-based thermal conductivity technology.

Product Features

Simultaneous measurement: Measures gas components and calorific values simultaneously, including CO, CO₂, CH₄, H₂, O₂, and CₙHₘ, automatically calculating and displaying calorific values
High measurement accuracy: No cross-interference among multi-component gases; CₙHₘ has no interference on CH₄ measurement, and CO, CO₂, and CH₄ have no interference on H₂ measurement
Automated operation: Equipped with professional pre-treatment solution, digital and analog output functions, enabling real-time online monitoring without manual operation
Stable performance: Constant-temperature sensor design eliminates ambient temperature influence; corrosion-resistant materials ensure long service life

Technical Parameters

Measurement Component	CO/CO₂/CH₄/H₂/O₂/C₂H₂/C₂H₄/CₙHₘ*/Calorific Value
Measurement Principle	CO/CO₂/CH₄/C₂H₂/C₂H₄/CₙHₘ: NDIR; H₂: TCD; O₂: ECD
Measurement Range	CO/CO₂/CH₄/H₂: (0~100)%; O₂: (0~25)%; C₂H₂/C₂H₄/CₙHₘ: (0~10%) (Optional)
Measurement Accuracy	CO/CO₂/CH₄/H₂: (0~100)±0.25%; C₂H₂/C₂H₄/CₙHₘ: (0~10)±0.25% (Optional)
Linear Error	CO/CO₂/CH₄/C₂H₂/C₂H₄/CₙHₘ: ±1%F.S.; O₂/H₂: ±2%F.S.
Resolution	0.01%
Repeatability	≤1%
Response Time	T90＜15s (NDIR)
Optimal Flow Rate	(0.7~1.2) L/min
Inlet Gas Pressure	(2~50) kPa
Gas Requirements	Dust-free, water-free, oil-free
Communication	RS-485/RS-232, (4-20) mA
Power Supply	100~240VAC, 100W
Display	LCD
Functional Configuration	Built-in zero-adjustment air pump, automatic air zero-adjustment, calorific value units switching, self-diagnosis function, online sensor status check
