Name: KGD - MQ - 524 In - Situ Laser Raman Spectroscopy Gas Analyzer
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-MQ-524
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KGD - MQ - 524 In - Situ Laser Raman Spectroscopy Gas Analyzer

KGD - MQ - 524 Laser Raman Spectroscopy Gas Analyzer

In - Situ Laser Raman Spectroscopy Gas Analyzer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-MQ-524

Request A Quote

Product Details

Measured Components:

H2, N2, O2, CO, CO2, H2S, CH4, C2H2, C2H4, C3H6, Etc.

Measurement Range:

0 - 100%

Accuracy:

±1%F.S.

Repeatability:

1%F.S.

Input Voltage:

100 - 240VAC, 50 - 60Hz (Standard)

Maximum Power:

Less Than 200W

Highlight:

KGD - MQ - 524 Laser Raman Spectroscopy Gas Analyzer

In - Situ Laser Raman Spectroscopy Gas Analyzer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

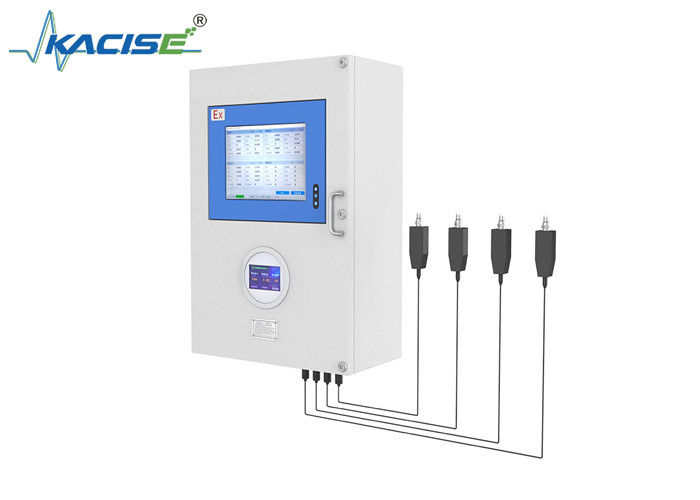

KGD - MQ - 524 In-Situ Laser Raman Spectroscopy Gas Analyzer

Product Overview

The KGD-MQ-524 utilizes laser Raman scattering technology to enhance, collect, process, and identify characteristic Raman scattering spectra of measured gases, enabling simultaneous qualitative and quantitative analysis of multiple gas components. Designed for in-situ installation, this system performs continuous online non-destructive analysis of nearly 20 gas components simultaneously.

Key Features

Non-destructive gas analysis including homonuclear diatomic analysis (H₂, N₂, O₂)
Continuous online monitoring of multiple gases simultaneously - one instrument for complete industrial process gas monitoring
Integrated Raman probe eliminates need for gas extraction and consumables (chromatographic columns, valves, air pumps)
Positive-pressure explosion-proof design ensures safety and durability with long maintenance cycles
Intuitive touchscreen interface with optional external PC keyboard connection

Technical Specifications

Parameter	Details
Measured Components	H₂, N₂, O₂, CO, CO₂, H₂S, CH₄, C₂H₂, C₂H₄, C₃H₆, etc.
Measurement Range	0 - 100%
Accuracy	±1%F.S.
Repeatability	1%F.S.
Input Voltage	100 - 240VAC, 50 - 60Hz (Standard)
Maximum Power	< 200W
Communication	RS-232/RS-485 Serial Port, TCP/IP Network Port, USB Interface, 4-20mA
User Interface	Explosion-proof Touchscreen
Dimensions (L×W×H)	540 × 300 × 900 mm
Weight	75kg
Number of Probes	4
Protection Level	IP65
Explosion-proof Class	Ex d ⅡC T4 Gb
Operating Temperature (Probe Body/Sample)	-20 - 200℃
Operating Temperature (Analyzer)	10 - 35℃
Operating Humidity	95%RH, Non-condensing
Maximum Operating Pressure	4MPa
Working Humidity	0 - 95% Relative Humidity, Non-condensing
Optical Fiber Length	Standard 50m (custom lengths available)

Note: The analyzer features second-level response times with no extended waiting periods required for measurements.
