Name: KGD-WQ-504 Portable Emissions Tester (PEMS)
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-WQ-504
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KGD-WQ-504 Portable Emissions Tester (PEMS)

PEMS Portable Emission Testing System

KGD-WQ-504 Emission Testing System

KGD-WQ-504 Portable Emission Testing System

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-WQ-504

Request A Quote

Product Details

Repeatability:

≤ ±0.5% F.S.

Drift:

≤ ±1% F.S./8h

VPR Removal Efficiency:

>99.0% (C40)

Minimum Particle Size Limit:

23 Nm Or 10 Nm

Measurement Principle:

Electrical Charge Counting Method

Measuring Range:

600 - 1.3×10⁹ #/cm³

Highlight:

PEMS Portable Emission Testing System

KGD-WQ-504 Emission Testing System

KGD-WQ-504 Portable Emission Testing System

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

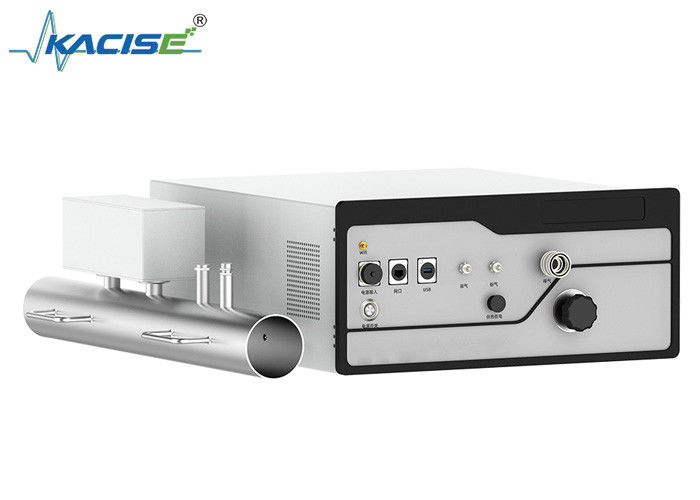

KGD-WQ-504 Portable Emissions Tester (PEMS)

Key Specifications

Repeatability

≤ ±0.5% F.S.

Drift

≤ ±1% F.S./8h

VPR Removal Efficiency

>99.0% (C40)

Minimum Particle Size Limit

23 nm or 10 nm

Measurement Principle

Electrical charge counting method

Measuring Range

600 - 1.3×10⁹ #/cm³

Product Overview

The KGD-WQ-504 Portable Emission Testing System (PEMS) is designed for real-time measurement of vehicle emissions during operation. It continuously monitors concentrations of CO, CO₂, NO, NO₂, NOₓ, O₂, THC, particulate matter, exhaust gas flow, GPS data, meteorological conditions, and OBD parameters. The system provides test guidance, automatic emission calculations, and report generation to meet global vehicle emission compliance testing requirements.

Key Features

Proprietary core sensing technology
Comprehensive lifecycle support services
Compact, lightweight design with low power consumption
Simple installation with 8+ hour lithium-ion battery life
Modular plug-and-play components
Adaptable for various regulatory and R&D testing needs
Waterproof and shock-resistant construction
Consistent performance in challenging environments

Technical Specifications

Gas Analysis Components

Component	Measurement Principle	Range	Accuracy
CO	NDIR	0-0.5-5%	≤±2.0%RS or ≤±0.3%FS
CO₂	NDIR	0-5-20%	≤±2.0%RS or ≤±0.3%FS
NO	NDUV	0-3000 ppm	≤±2.0%RS or ≤±0.3%FS
NO₂	NDUV	0-1000 ppm	≤±2.0%RS or ≤±0.3%FS

Performance Characteristics

Parameter	Specification
Response Time (T10-90)	< 2.5s
Linearity	Determination coefficient: ≥ 0.998; Slope: 0.99-1.01
Repeatability	≤ ±0.5% F.S.
Drift	≤ ±1% F.S./8h
Operating Environment	-10 to 45°C, ≤90%RH, 0-3000m altitude

Particulate Measurement

Parameter	Specification
Minimum Particle Size	23 nm or 10 nm
Measurement Range	600 - 1.3×10⁹ #/cm³
Accuracy	≤ ±10%
VPR Efficiency	>99.0% (C40)
Response Time	T90 < 5s
